Equipment and Furnishings, Interior Crossbeam
100920-00

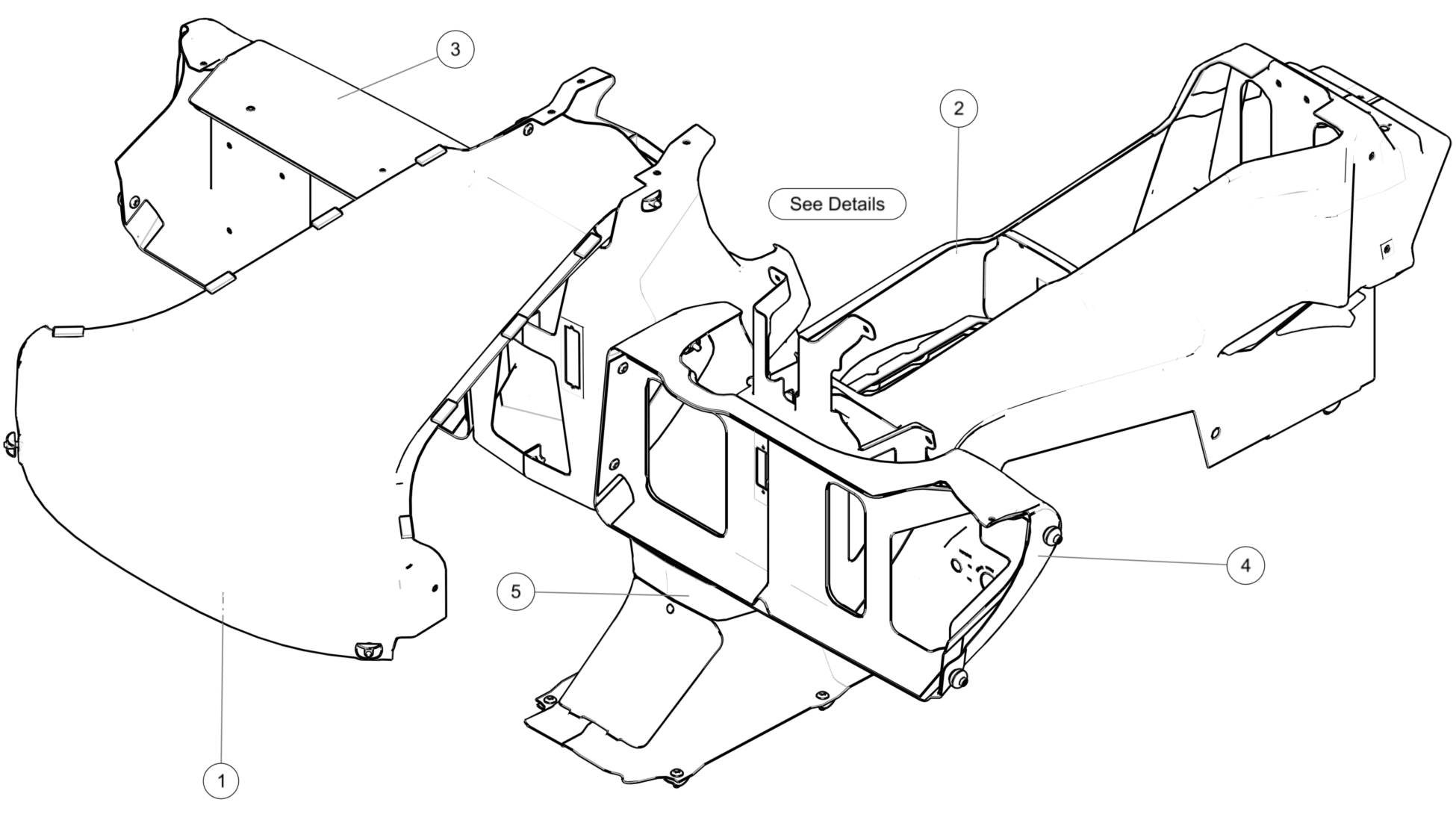

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000342 | SPINE, IP CENTER, SUBASSY | 1 | Each | Includes 8x ICA007892 SPACER, POLYESTER FELT, WALCO 10-5, .125X.375X1.00 |
2 | Contact ICON | CENTER CONSOLE ASSY, BONDED & TRIMMED | 1 | Each | |
3 | ME000978 | PAINTED, CROSSBEAM ASSY, BONDED, RH SIDE | 1 | Each | |
4 | ME000931 | CROSSBEAM PAD PRINTED ASSY, LH SIDE | 1 | Each | ALT PN: ME000922 CROSSBEAM ASSY, BONDED, LH SIDE ALT PN: ME000977 PAINTED, CROSSBEAM ASSY, BONDED, LH SIDE |
5 | ICA009558 | STRAP ASSY, MAP | 1 | Each |

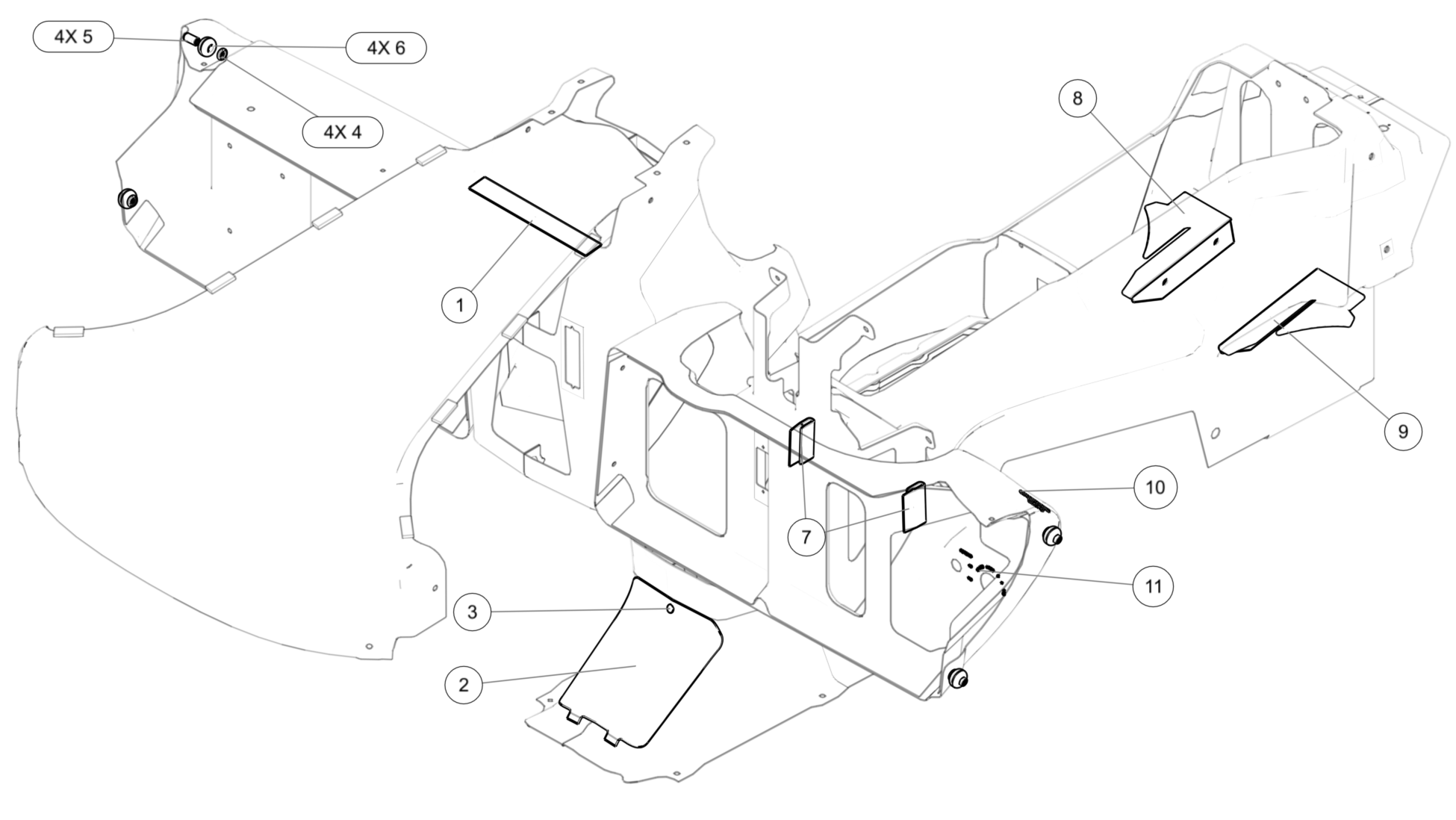

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA009345 | SPACER, RECT, 10-5, SPINE-CC | 1 | Each | |
2 | ICA008528 | COVER, CENTER CONSOLE, ELT | 1 | Each | |
3 | 90218A223 | PANEL CLIP, CANOE TYPE, PLASTIC, .131X.125-.140, BLACK | 1 | Each | |
4 | NAS1149EN832R | WASHER, FLAT, A286, .174X.375X.032 | 4 | Each | |
5 | 1140-R-SS-500 | STANDOFF, RND, 8-32X.250X.500 | 4 | Each | |
6 | 9600K28 | GROMMET, SBR RUBBER, .625X.250X.062, BLACK, 100QTY | 4 | Each | |
7 | ICA009557 | J-CLIP, TRIMMED, 1.5 WIDE | 2 | Each | |
8 | ICA010555 | CLOSEOUT, SEATBELT, INBD, RH | 1 | Each | |
9 | ICA010554 | CLOSEOUT, SEATBELT, INBD, LH | 1 | Each | |
10 | ICA008869 | GRAPHIC, MANEUVERING SPEED | 1 | Each | |
11 | ICA008313 | GRAPHIC, MASTER AND KEY SWITCH | 1 | Each |

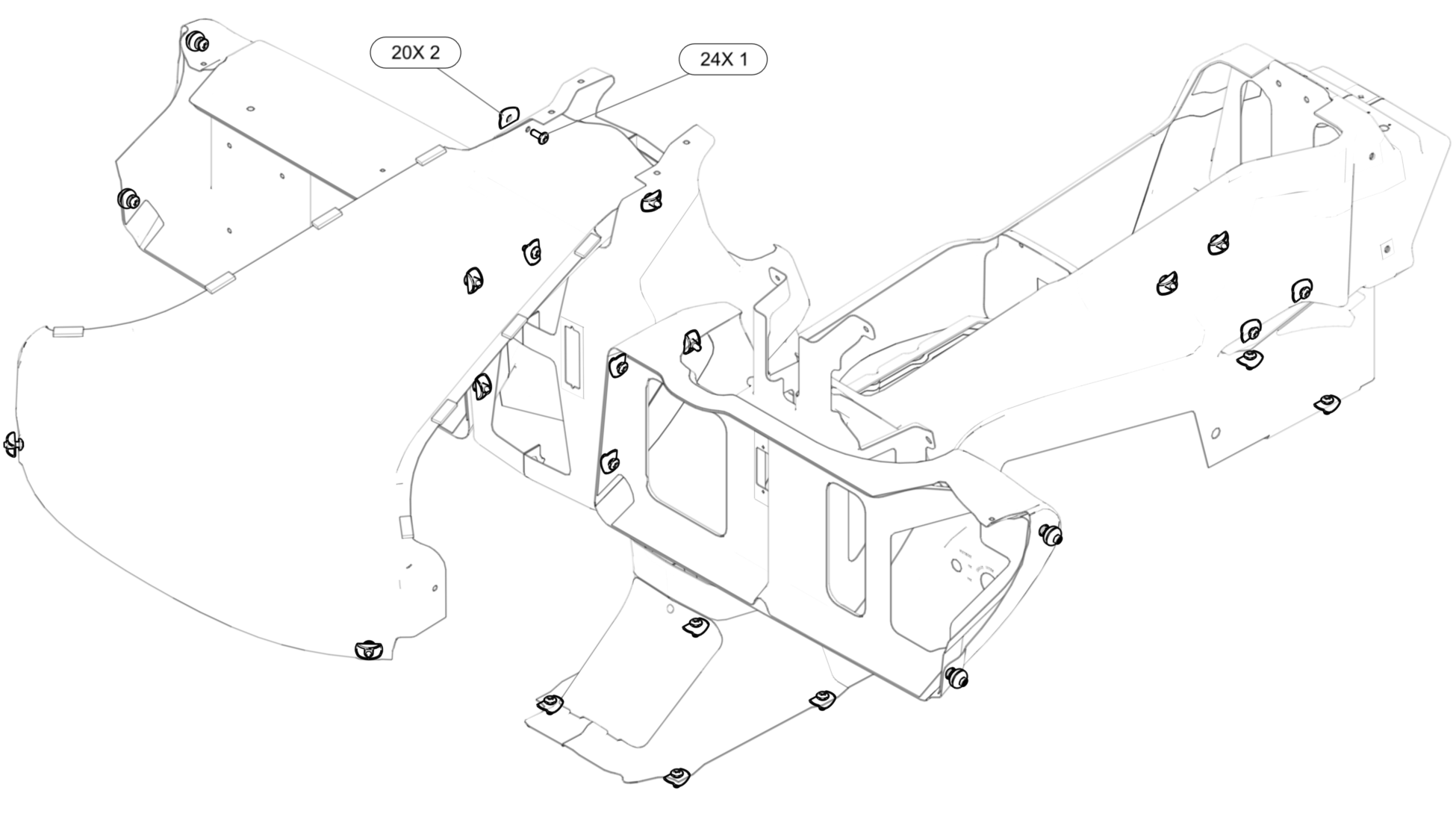

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 24 | Each | |
2 | CN609CR08P | NUT PLATE, TWO LUG, ADH BND, 8-32 | 20 | Each | 2x included in ME000342 |
