Instruments, Electrical Installation, Center Console
100894-00

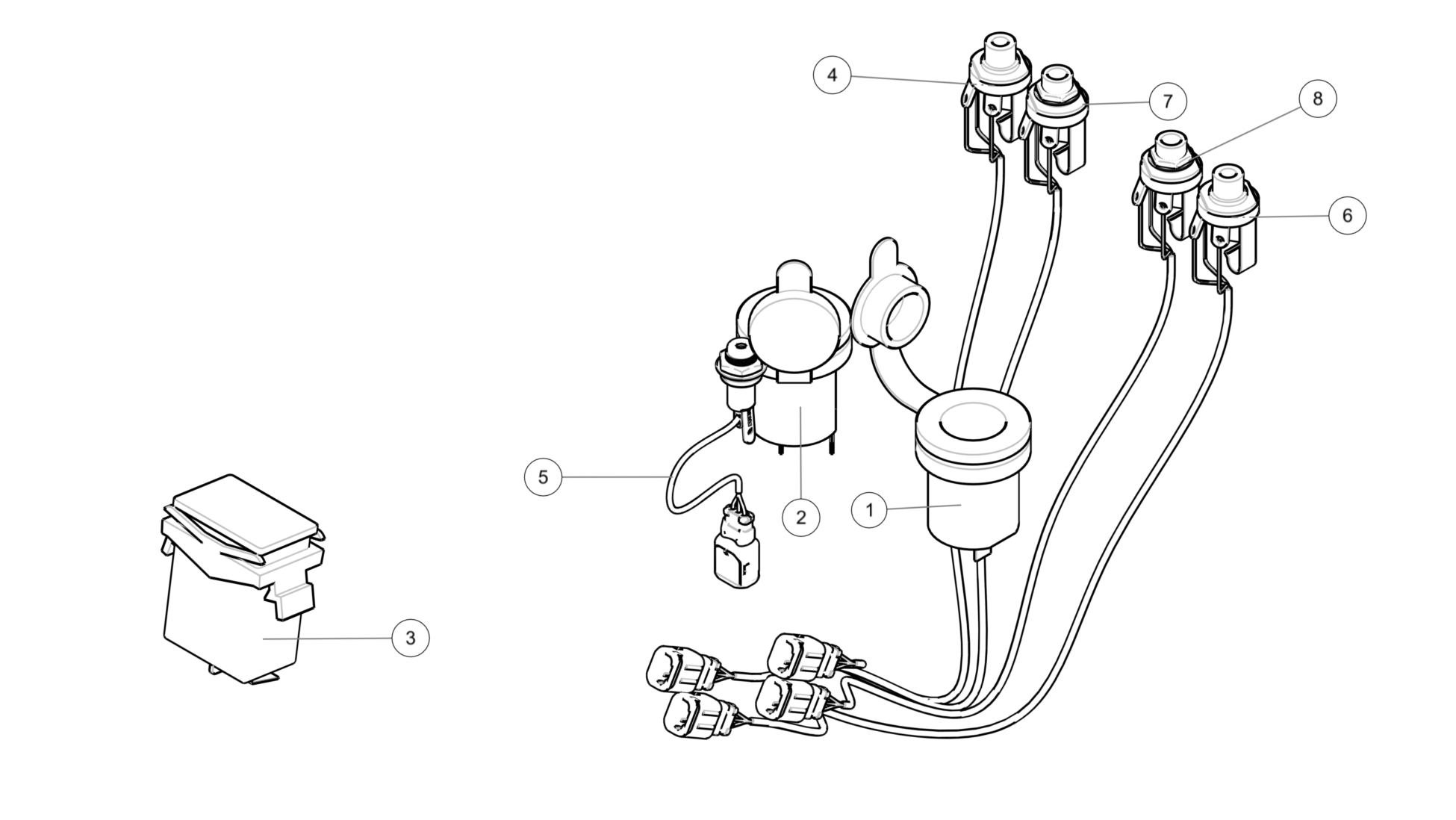

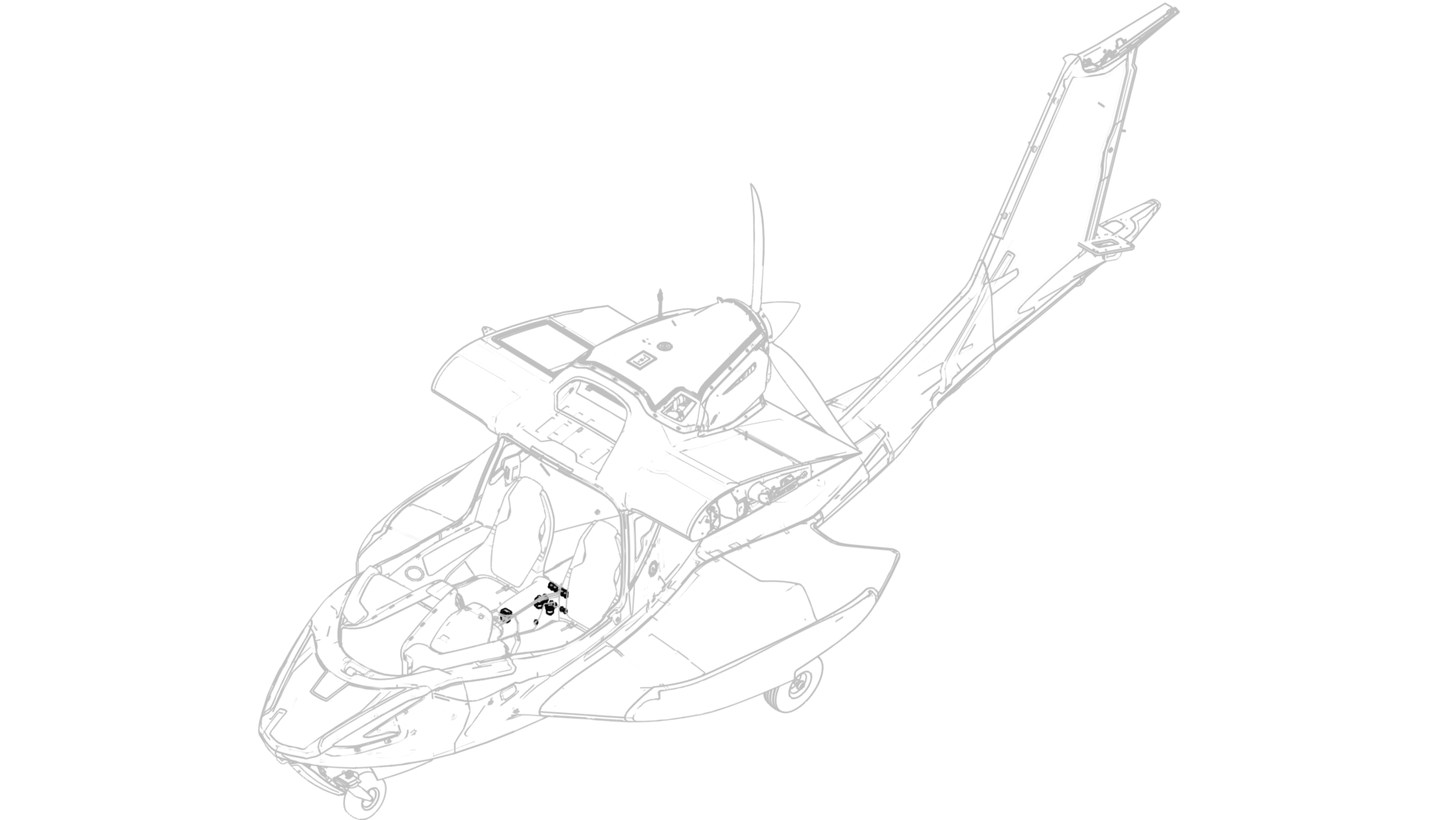

Center console electrical installation.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | PN1011 | SOCKET, ELECTRICAL, 12V DASH | 1 | Each | |
2 | PN1016 | SOCKET, CHARGER, DUAL USB | 1 | Each | |
3 | 82452-82 | HOURMETER, QUARTZ, 12-60VDC, 10000HRS | 1 | Each | |
4 | ICA014825 | JACK, MICROPHONE, RH, DEUTSCH | 1 | Each | Retrofit may be required for ASN 00001-00138 |
5 | ICA014821 | JACK, STEREO, PANEL MOUNT, 3.5MM, DEUTSCH | 1 | Each | Retrofit may be required for ASN 00001-00138 |
6 | ICA014824 | JACK, MICROPHONE, LH, DEUTSCH | 1 | Each | Retrofit may be required for ASN 00001-00138 |
7 | ICA014823 | JACK, STEREO, HEADPHONE, RH, DEUTSCH | 1 | Each | Retrofit may be required for ASN 00001-00138 |
8 | ICA014822 | JACK, STEREO, HEADPHONE, LH, DEUTSCH | 1 | Each | Retrofit may be required for ASN 00001-00138 |
