Landing Gear, Wheel, Main Landing Gear
100850-00

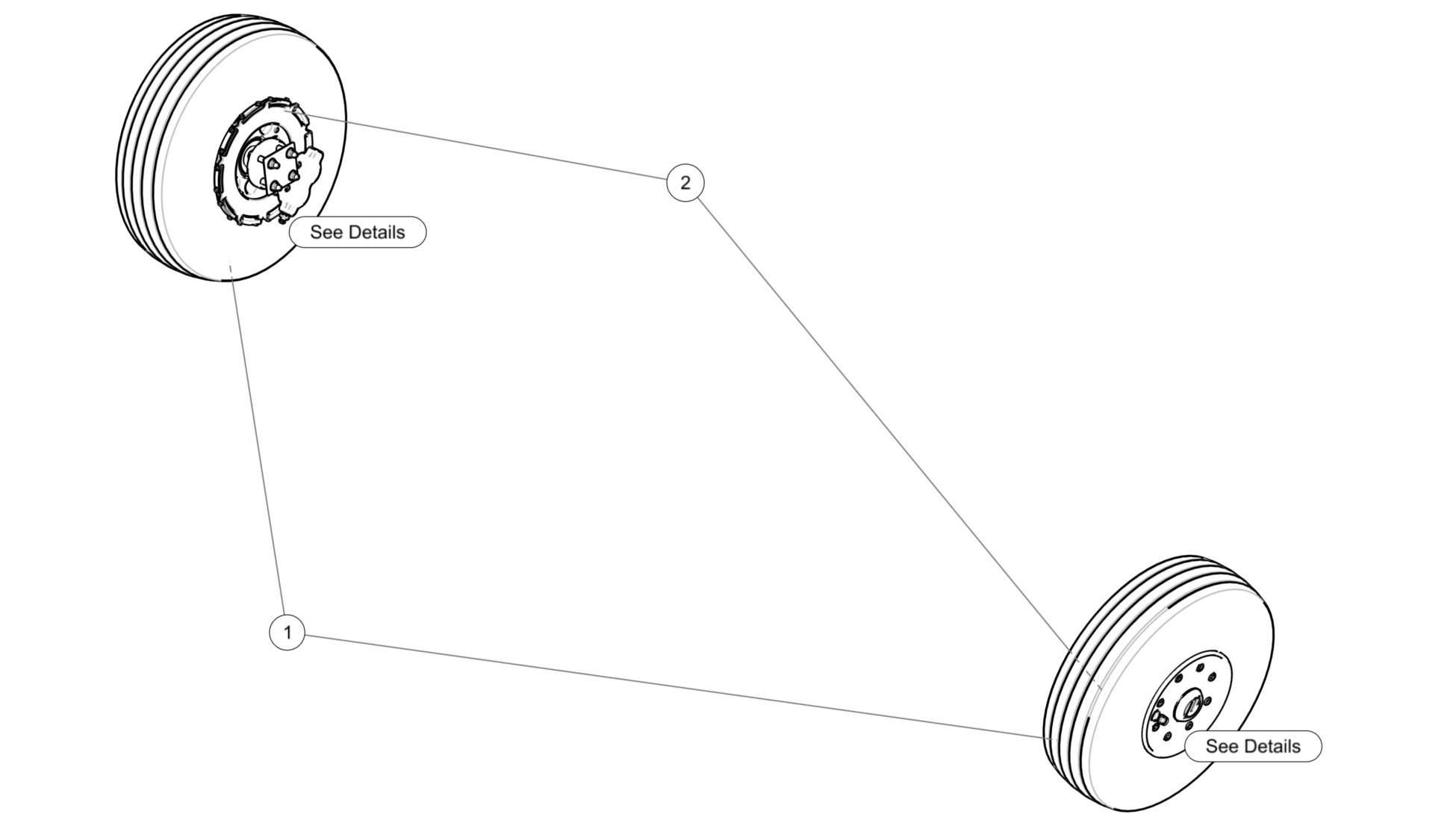

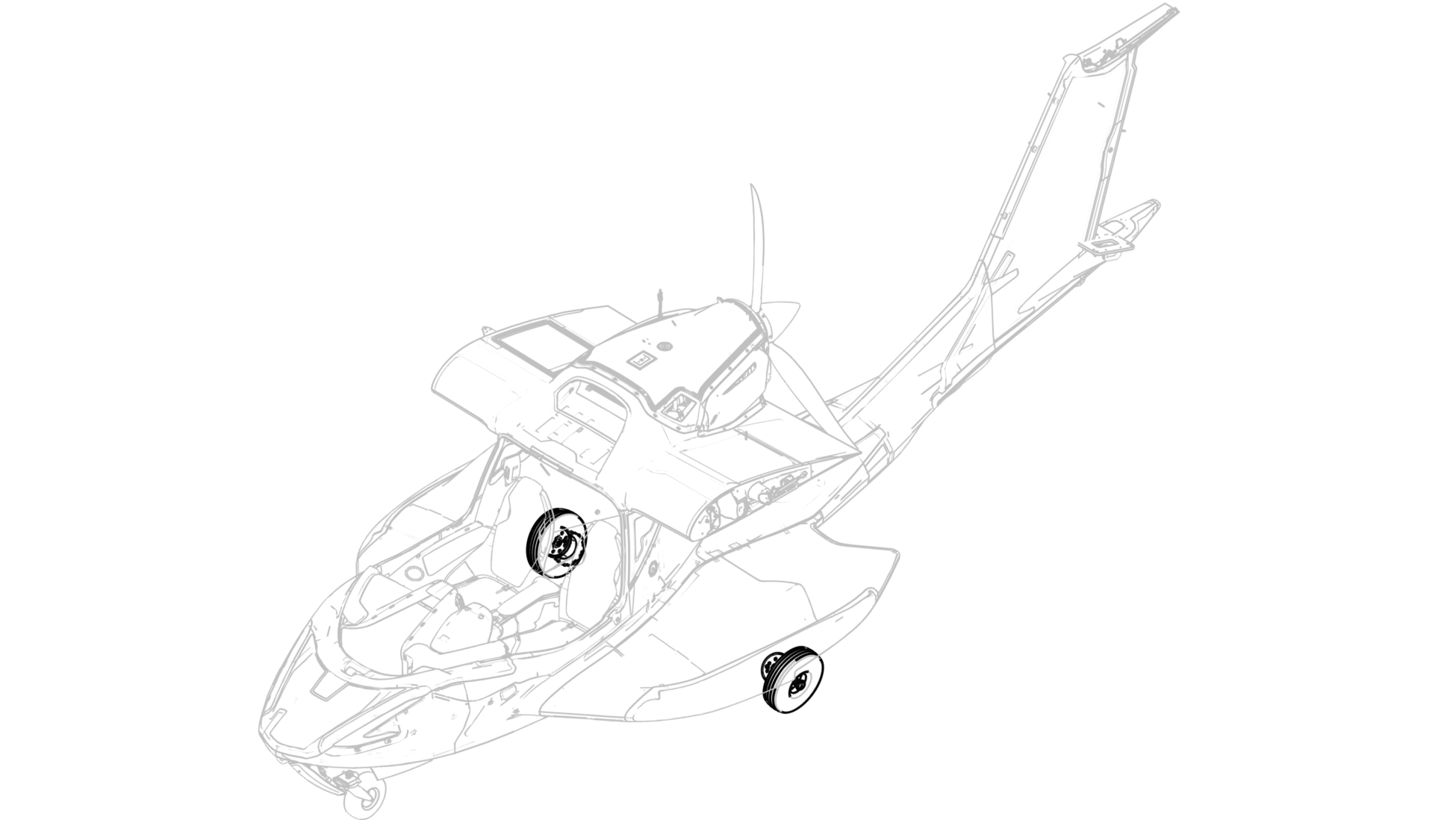

Main Landing Gear (MLG) wheel installation.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA013047 | TIRE, TUBELESS, 5.00-5, 6 PLY | 2 | Each | |
2 | ICA012124 | DISC, BRAKE, MLG | 2 | Each |

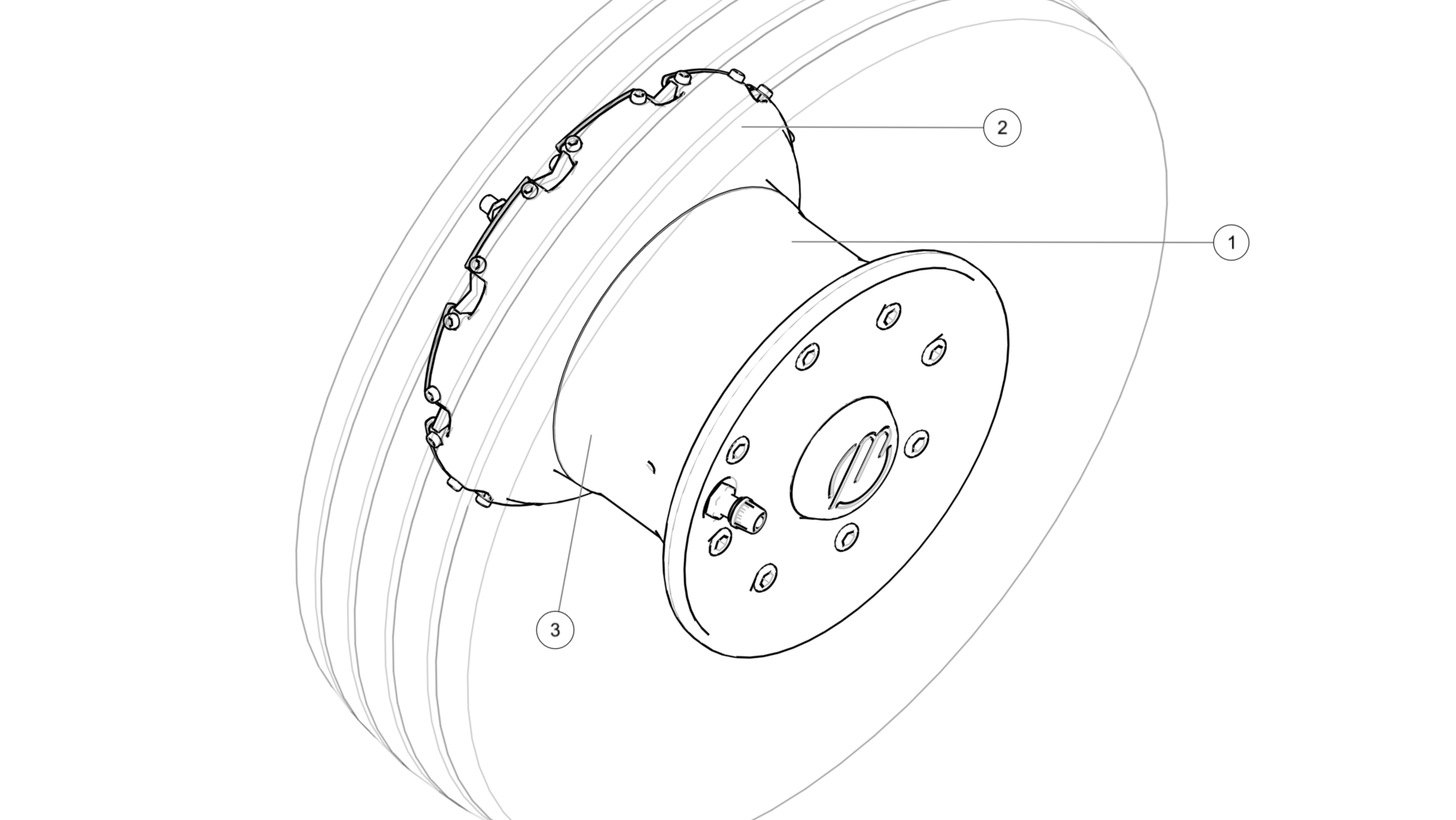

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA015070 | WHEEL, 5.00-5, BLACK, MLG, OUTBD | 1 | Each | Included in ICA015071 |
2 | ICA015069 | WHEEL, 5.00-5, BLACK, MLG, INBD | 1 | Each | Included in ICA015071 |
3 | ICA015071 | WHEEL ASSY, 5.00-5, BLACK, MLG | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | AN4C20A | BOLT, MACH, CRES, .250-28X1.56 | 1 | Each | |
2 | NAS1149C0432R | WASHER, FLAT, CRES, .250X.032, PSVT | 4 | Each | |
3 | ICA012120 | PIN, COTTER, .312 | 1 | Each | |
4 | ICA012122 | SPACER, AXLE, MLG, BERINGER | 1 | Each | |
5 | ICA012131 | NUT, WHEEL, AL, MLG | 1 | Each | |
6 | ICA015061 | CAP, WHEEL, 5.00-5, BLACK, MLG | 1 | Each | |
7 | AN4C16A | BOLT, MACH, CRES, .25-28X1.313 | 3 | Each | |
8 | MS21043-4 | NUT, SLFLKG, RDC HEX, CRES, .250-28 | 4 | Each | |
9 | ICA007057 | PLATE, LEG REINFORCEMENT, WHEEL, MLG | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA015037 | VALVE, WHEEL | 1 | Each | Included in ICA015071 |
2 | ICA015050 | O-RING, WHEEL, 5.00-5, MLG | 1 | Each | Included in ICA015071 |
3 | ICA014902 | THRU BOLT, WHEEL, MLG | 8 | Each | Included in ICA015071 |
4 | ICA015033 | O-RING, VALVE, WHEEL | 1 | Each | Included in ICA015071 |
5 | ICA015052 | BEARING, WHEEL, STAINLESS, MLG, OUTBD | 1 | Each | Included in ICA015071 |
6 | ICA015051 | CIRCLIP, WHEEL, MLG, OUTBD | 1 | Each | Included in ICA015071 |
7 | ICA015057 | CLIP, WHEEL, MLG | 20 | Each | Included in ICA015071 |
8 | ICA015058 | SCREW, CLIP, WHEEL, MLG | 20 | Each | Included in ICA015071 |
9 | ICA015053 | BEARING, WHEEL, STAINLESS, MLG, INBD | 1 | Each | Included in ICA015071 |
10 | ICA015056 | CIRCLIP, WHEEL, MLG, INBD | 1 | Each | Included in ICA015071 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

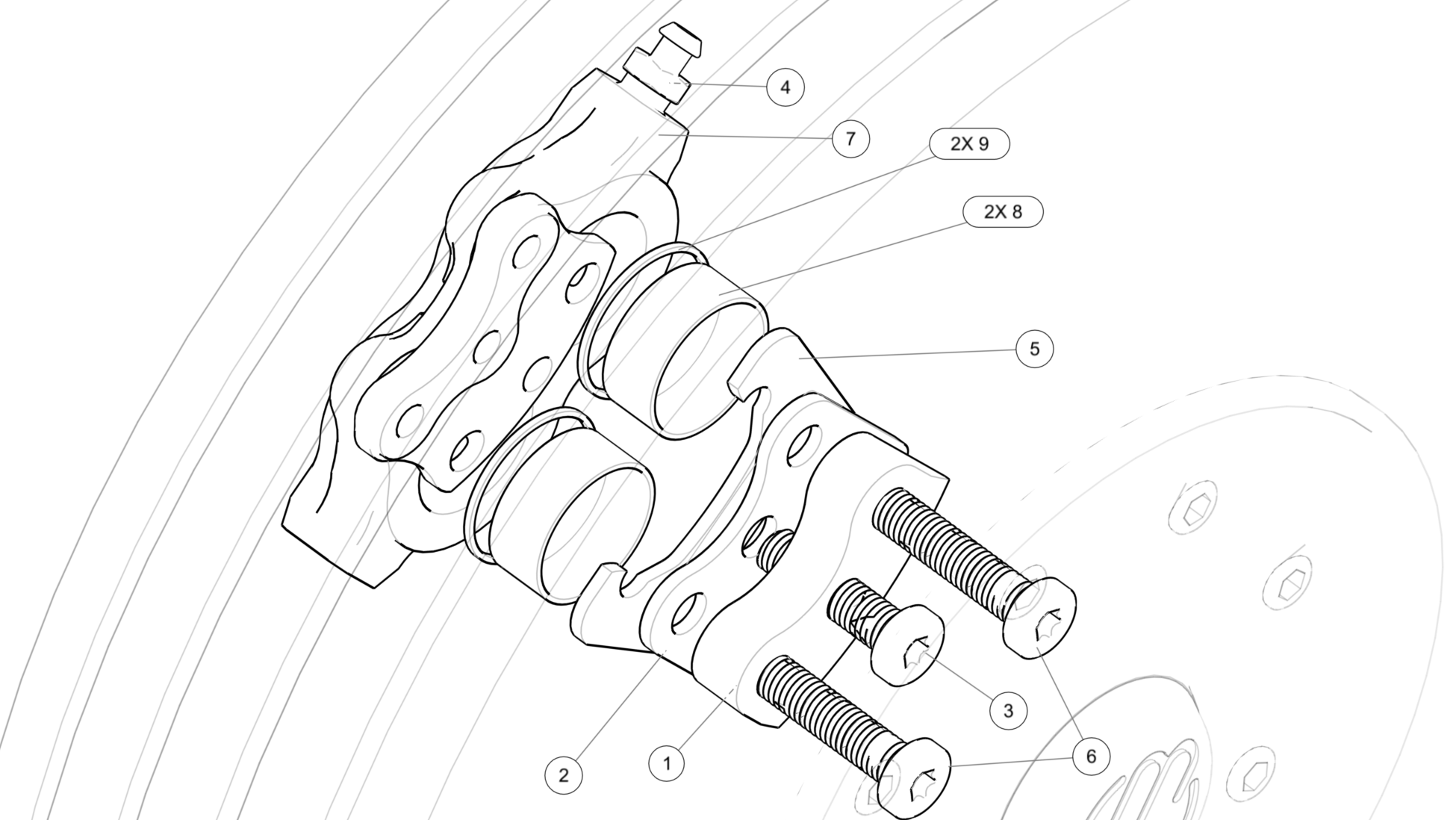

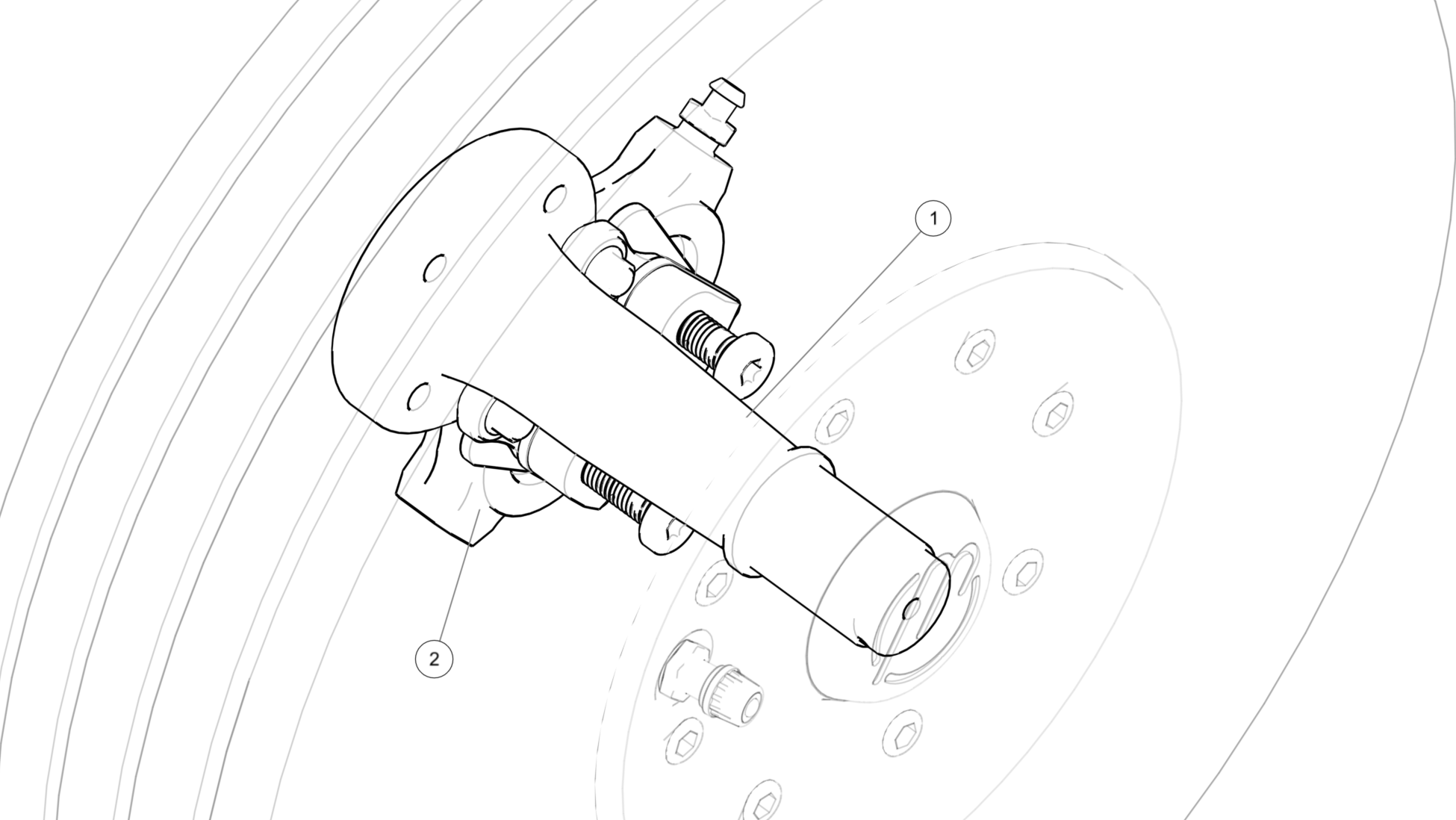

1 | ICA012126 | AXLE AND BRAKE ASSY | 1 | Each | |
2 | ICA014876 | CALIPER ASSY, BRAKE, MLG | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA014870 | CALIPER BACK PLATE, BRAKE, MLG | 1 | Each | Included in ICA014876 |
2 | ICA014872 | BRAKE PAD, MLG, OUTSIDE | 1 | Each | Included in ICA014876 |
3 | ICA014874 | SCREW, M8X30 | 1 | Each | Included in ICA014876 |
4 | ICA014871 | BLEEDER, BRAKE, MLG | 1 | Each | Included in ICA014876 |
5 | ICA014873 | BRAKE PAD, MLG, INSIDE | 1 | Each | Included in ICA014876 |
6 | ICA014875 | SCREW, M8X41 | 2 | Each | Included in ICA014876 |
7 | ICA014869 | CALIPER HOUSING, BRAKE, MLG | 1 | Each | Included in ICA014876 |
8 | ICA014883 | PISTON, CALIPER, BRAKE, MLG | 2 | Each | Included in ICA014876 |
9 | ICA014882 | SEAL, PISTON, CALIPER, BRAKE, MLG | 2 | Each | Included in ICA014876 |

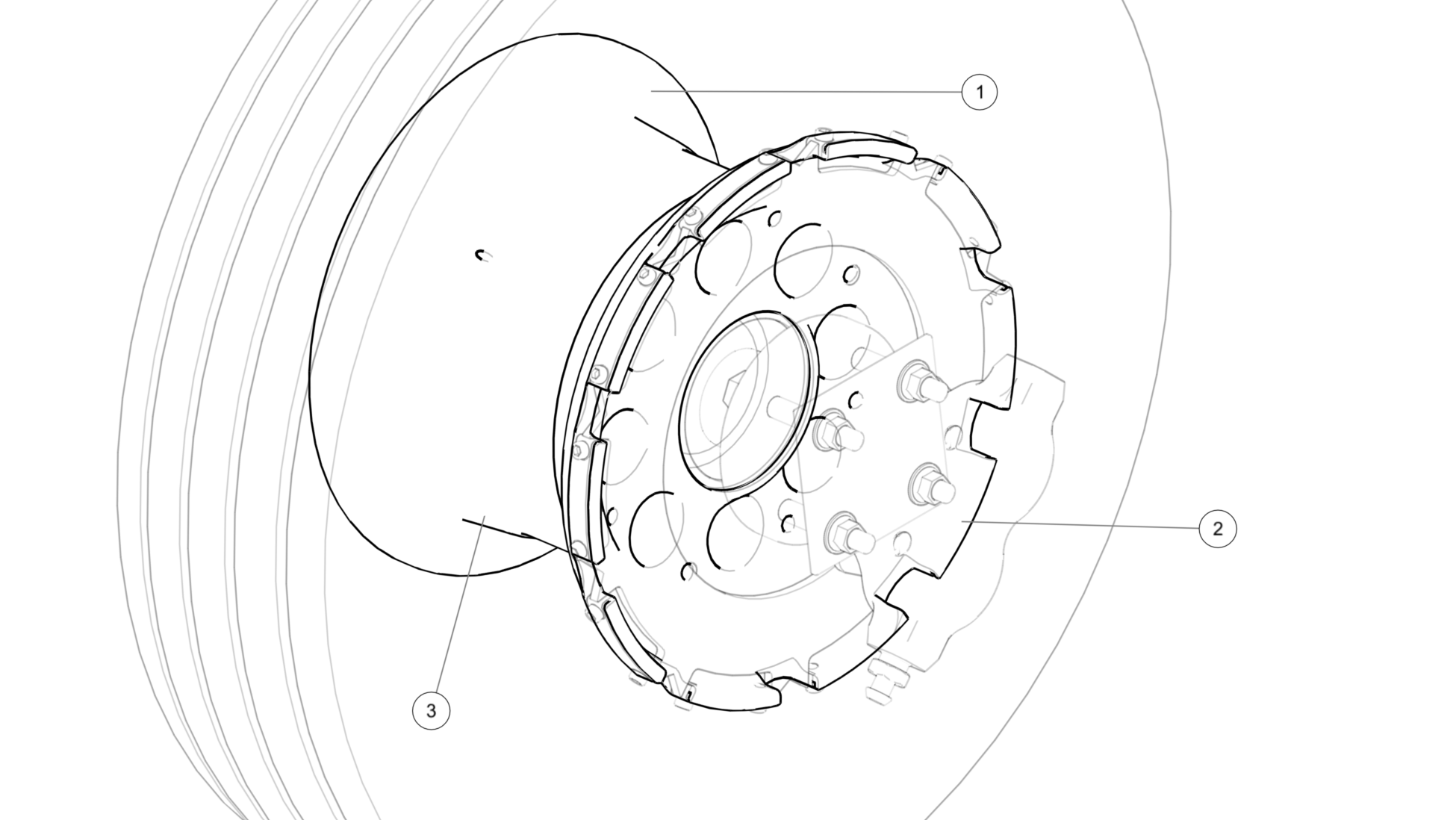

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA015070 | WHEEL, 5.00-5, BLACK, MLG, OUTBD | 1 | Each | Included in ICA015071 |
2 | ICA015069 | WHEEL, 5.00-5, BLACK, MLG, INBD | 1 | Each | Included in ICA015071 |
3 | ICA015071 | WHEEL ASSY, 5.00-5, BLACK, MLG | 1 | Each |

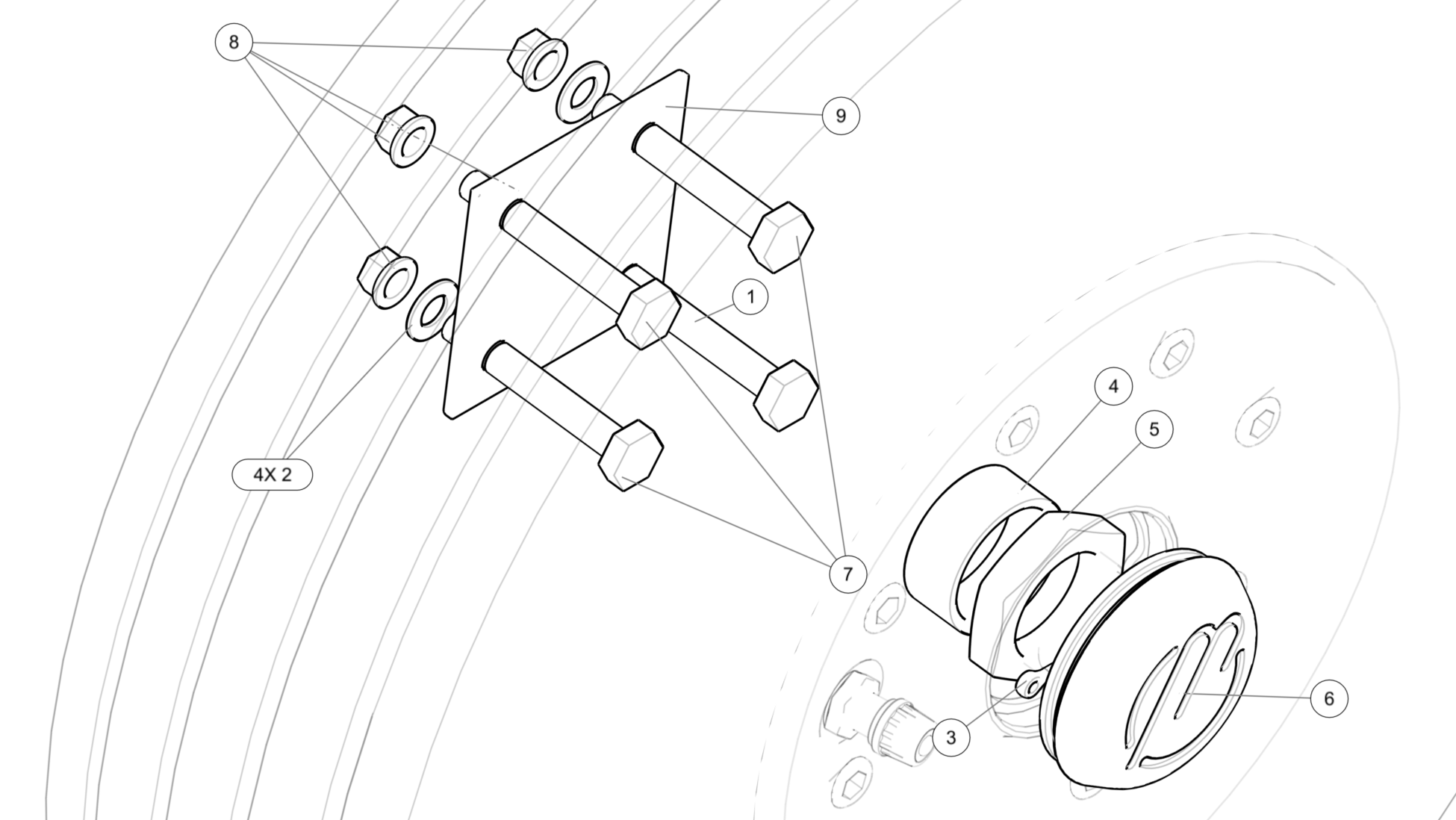

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | AN4C20A | BOLT, MACH, CRES, .250-28X1.56 | 1 | Each | |
2 | NAS1149C0432R | WASHER, FLAT, CRES, .250X.032, PSVT | 4 | Each | |
3 | ICA012120 | PIN, COTTER, .312 | 1 | Each | |
4 | ICA012122 | SPACER, AXLE, MLG, BERINGER | 1 | Each | |
5 | ICA012131 | NUT, WHEEL, AL, MLG | 1 | Each | |
6 | ICA015061 | CAP, WHEEL, 5.00-5, BLACK, MLG | 1 | Each | |
7 | AN4C16A | BOLT, MACH, CRES, .25-28X1.313 | 3 | Each | |
8 | MS21043-4 | NUT, SLFLKG, RDC HEX, CRES, .250-28 | 4 | Each | |
9 | ICA007057 | PLATE, LEG REINFORCEMENT, WHEEL, MLG | 1 | Each |

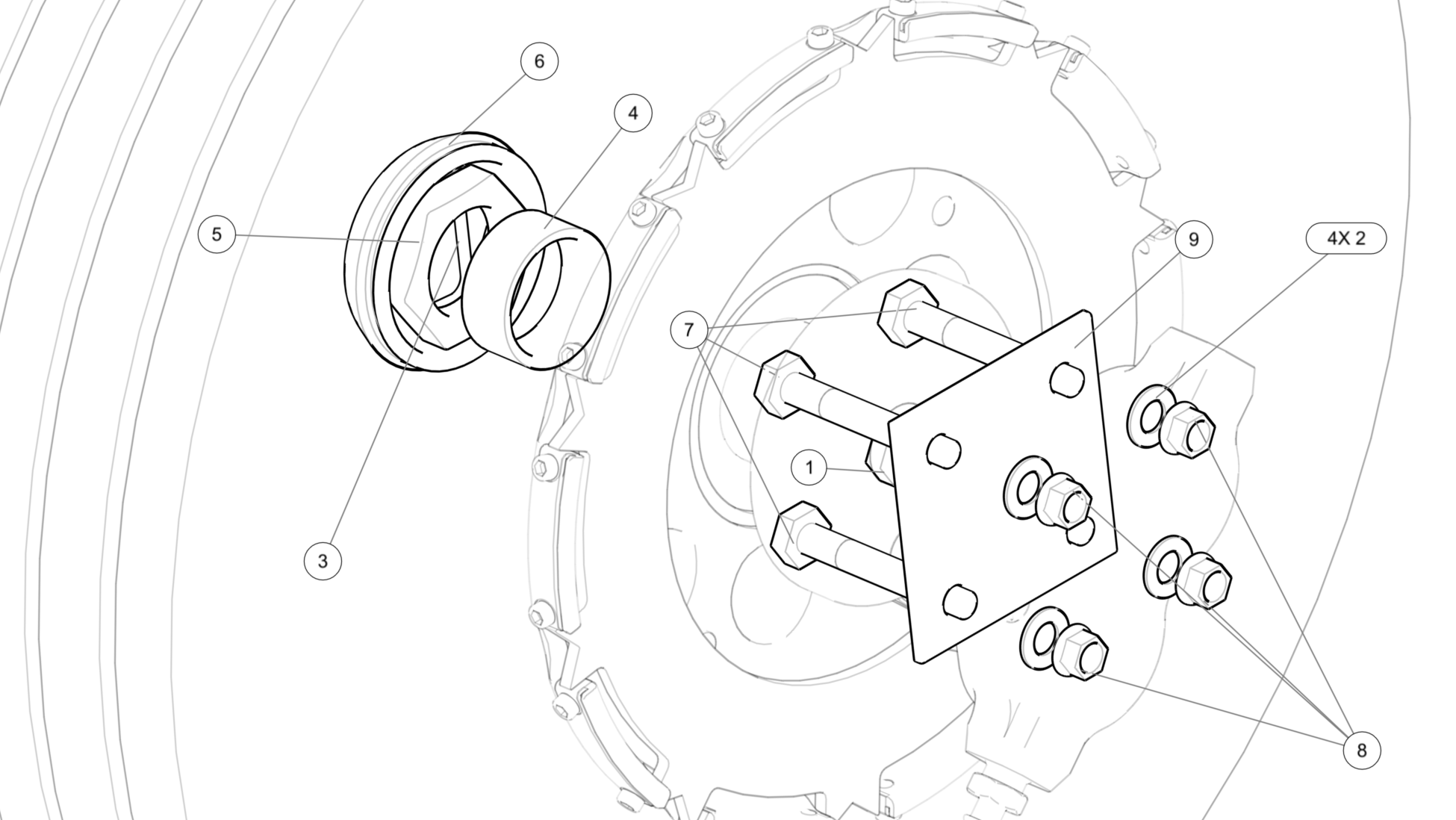

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA015058 | SCREW, CLIP, WHEEL, MLG | 20 | Each | Included in ICA015071 |
2 | ICA015053 | BEARING, WHEEL, STAINLESS, MLG, INBD | 1 | Each | Included in ICA015071 |
3 | ICA015056 | CIRCLIP, WHEEL, MLG, INBD | 1 | Each | Included in ICA015071 |
4 | ICA015037 | VALVE, WHEEL | 1 | Each | Included in ICA015071 |
5 | ICA015050 | O-RING, WHEEL, 5.00-5, MLG | 1 | Each | Included in ICA015071 |
6 | ICA014902 | THRU BOLT, WHEEL, MLG | 8 | Each | Included in ICA015071 |
7 | ICA015033 | O-RING, VALVE, WHEEL | 1 | Each | Included in ICA015071 |
8 | ICA015052 | BEARING, WHEEL, STAINLESS, MLG, OUTBD | 1 | Each | Included in ICA015071 |
9 | ICA015051 | CIRCLIP, WHEEL, MLG, OUTBD | 1 | Each | Included in ICA015071 |
10 | ICA015057 | CLIP, WHEEL, MLG | 20 | Each | Included in ICA015071 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA012126 | AXLE AND BRAKE ASSY | 1 | Each | |
2 | ICA014876 | CALIPER ASSY, BRAKE, MLG | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA014870 | CALIPER BACK PLATE, BRAKE, MLG | 1 | Each | Included in ICA014876 |
2 | ICA014872 | BRAKE PAD, MLG, OUTSIDE | 1 | Each | Included in ICA014876 |
3 | ICA014874 | SCREW, M8X30 | 1 | Each | Included in ICA014876 |
4 | ICA014871 | BLEEDER, BRAKE, MLG | 1 | Each | Included in ICA014876 |
5 | ICA014873 | BRAKE PAD, MLG, INSIDE | 1 | Each | Included in ICA014876 |
6 | ICA014875 | SCREW, M8X41 | 2 | Each | Included in ICA014876 |
7 | ICA014869 | CALIPER HOUSING, BRAKE, MLG | 1 | Each | Included in ICA014876 |
8 | ICA014883 | PISTON, CALIPER, BRAKE, MLG | 2 | Each | Included in ICA014876 |
9 | ICA014882 | SEAL, PISTON, CALIPER, BRAKE, MLG | 2 | Each | Included in ICA014876 |
