Fuselage, Tie Down, Seawing
100836-00

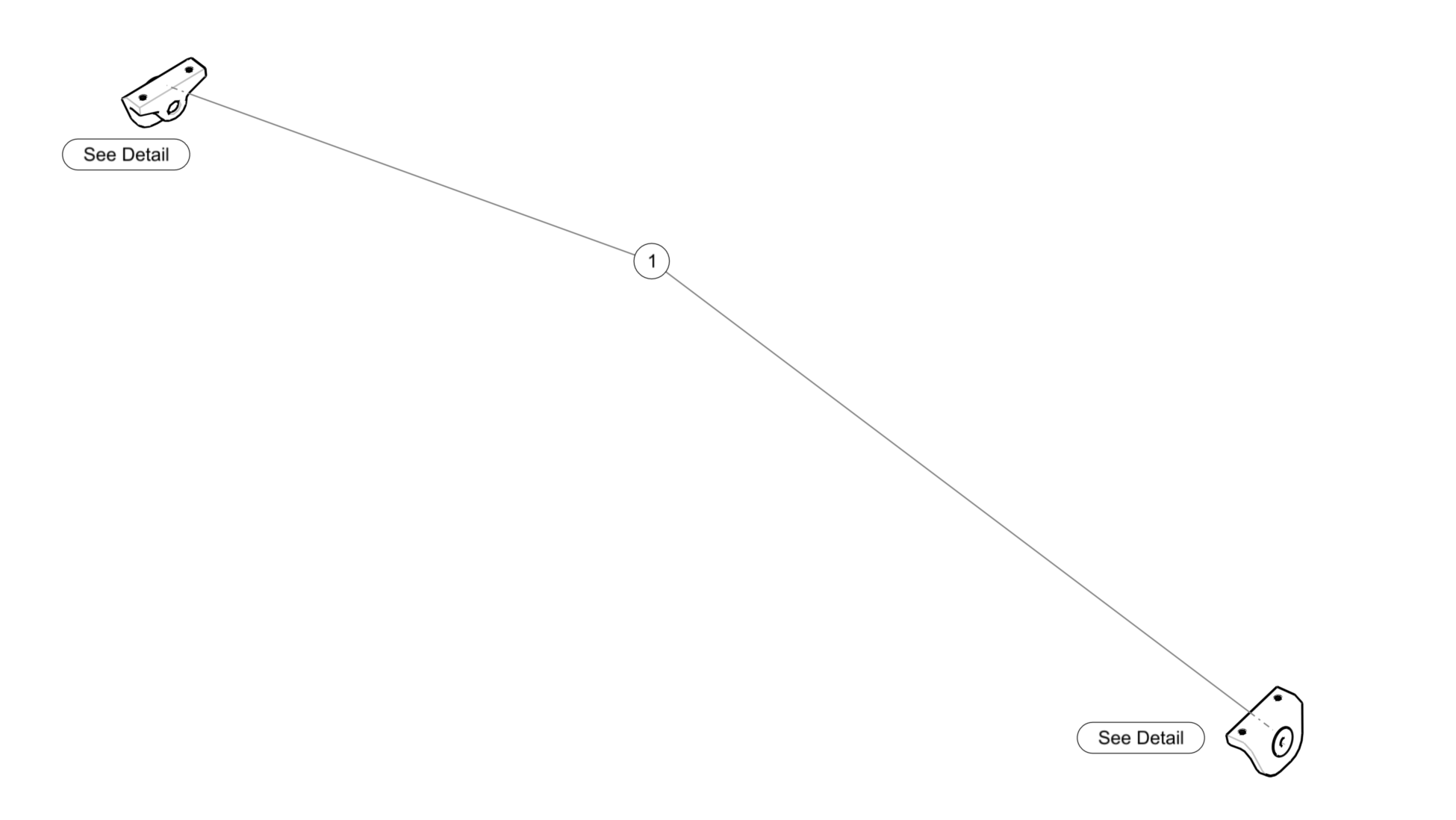

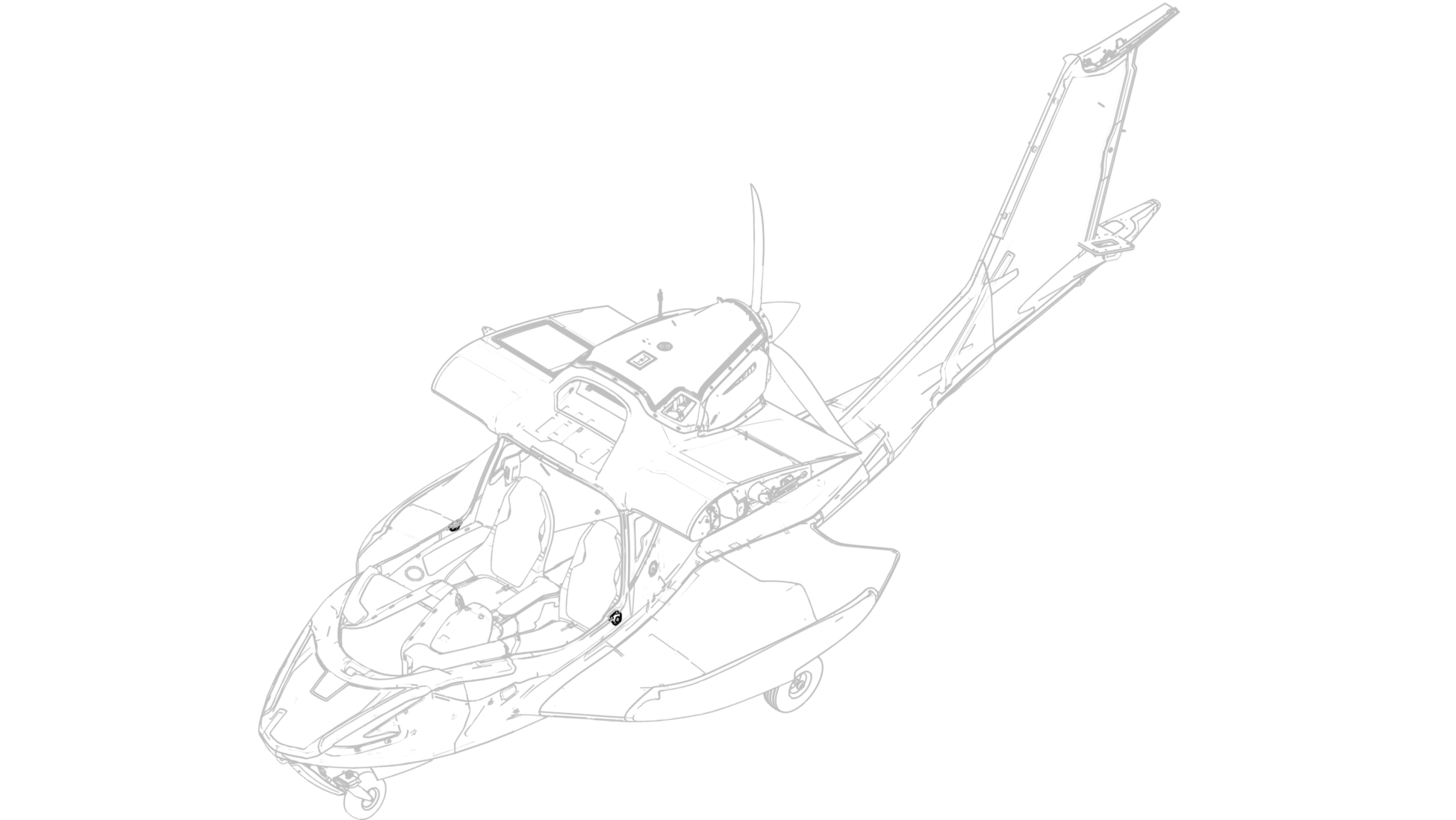

Seawing tie down installation into the fuselage.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA008360 | TIE DOWN FITTING, SEAWING | 2 | Each |

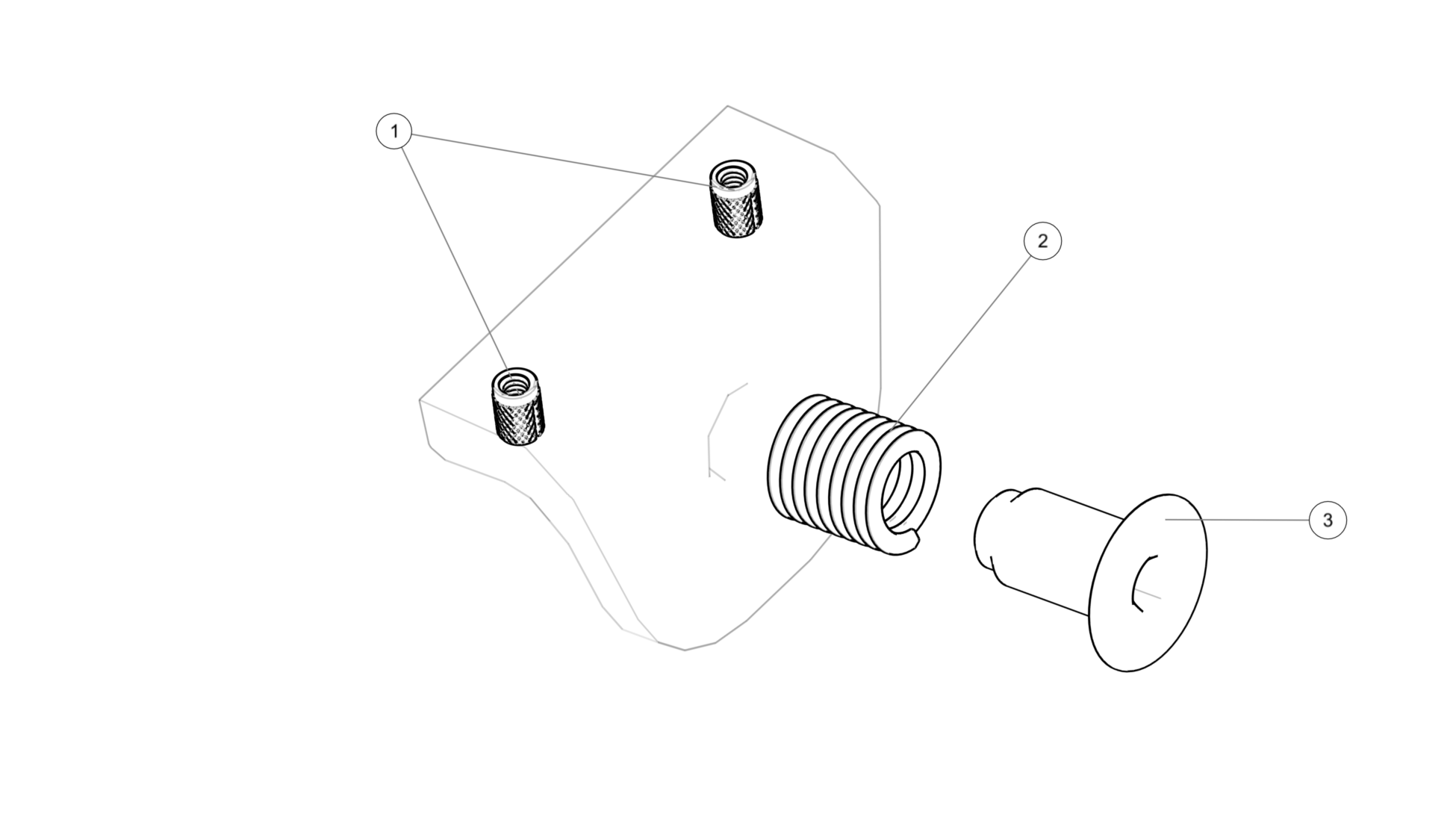

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 92394A114 | INSERT, THREADED, PRESS FIT FOR PLASTIC, SST, 8-32X.312 | 2 | Each | |
2 | 90296A142 | INSERT, HELICOIL, SCREW-LOCK, .500-13 X 750 | 1 | Each | |
3 | ICA008361 | BUSHING, TIEDOWN, JACKING SEAWING | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 92394A114 | INSERT, THREADED, PRESS FIT FOR PLASTIC, SST, 8-32X.312 | 2 | Each | |
2 | 90296A142 | INSERT, HELICOIL, SCREW-LOCK, .500-13 X 750 | 1 | Each | |
3 | ICA008361 | BUSHING, TIEDOWN, JACKING SEAWING | 1 | Each |
