Placard, Step Installation, Seawing
100930-00

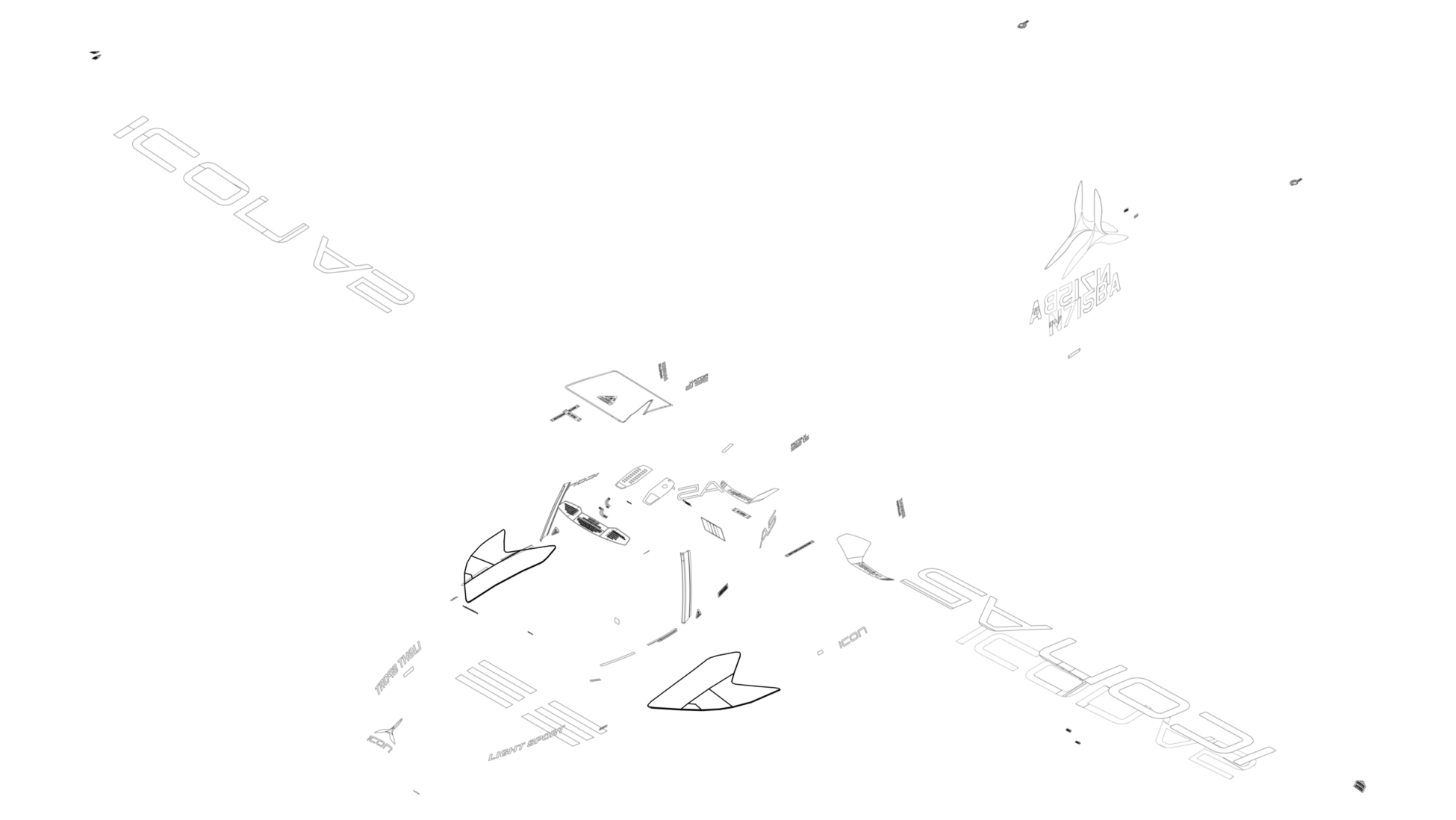

Seawing step installation placard. See Paint
Schemes for additional information about paint schemes.

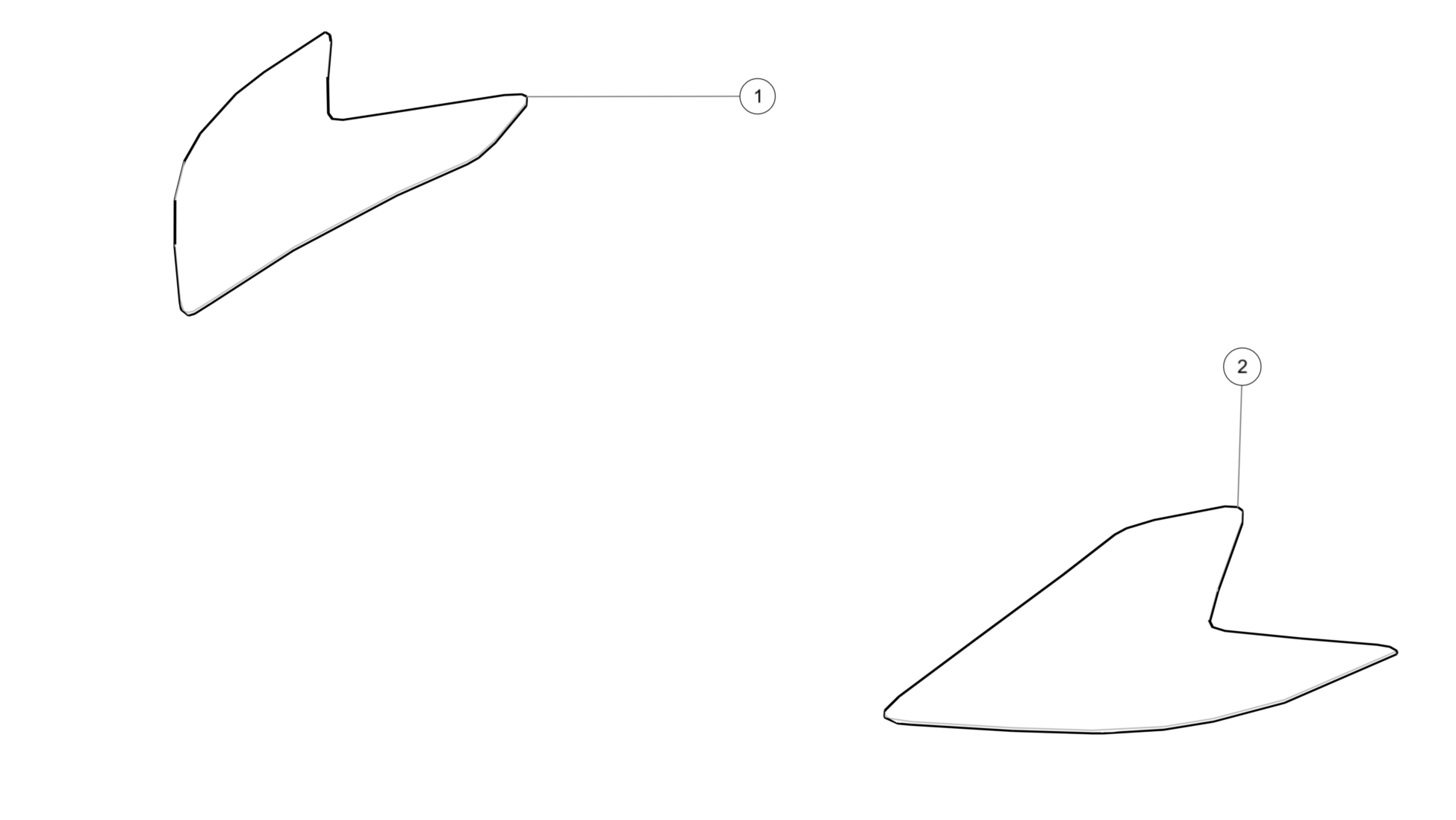

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA001100 | ANTI-SLIP PAD, ADHESIVE SHEET, RH SIDE | 1 | Each | Light Gray - For Approach, Pursuit, and Velocity schemes |
ICA015479 | ANTI-SLIP PAD, SEAWING, DARK GRAY, RH | 1 | Each | Dark Gray - For Electric Green, Electric Blue, Strata Gray, and Astra Red schemes. Permissible for alternate use on Approach, Pursuit, and Velocity schemes. | |
2 | ICA001102 | ANTI-SLIP PAD, ADHESIVE SHEET, LH SIDE | 1 | Each | Light Gray - For Approach, Pursuit, and Velocity schemes |
ICA015480 | ANTI-SLIP PAD, SEAWING, DARK GRAY, LH | 1 | Each | Dark Gray - For Electric Green, Electric Blue, Strata Gray, and Astra Red schemes. Permissible for alternate use on Approach, Pursuit, and Velocity schemes. |
