Fuselage, Seawing Tip
100835-00

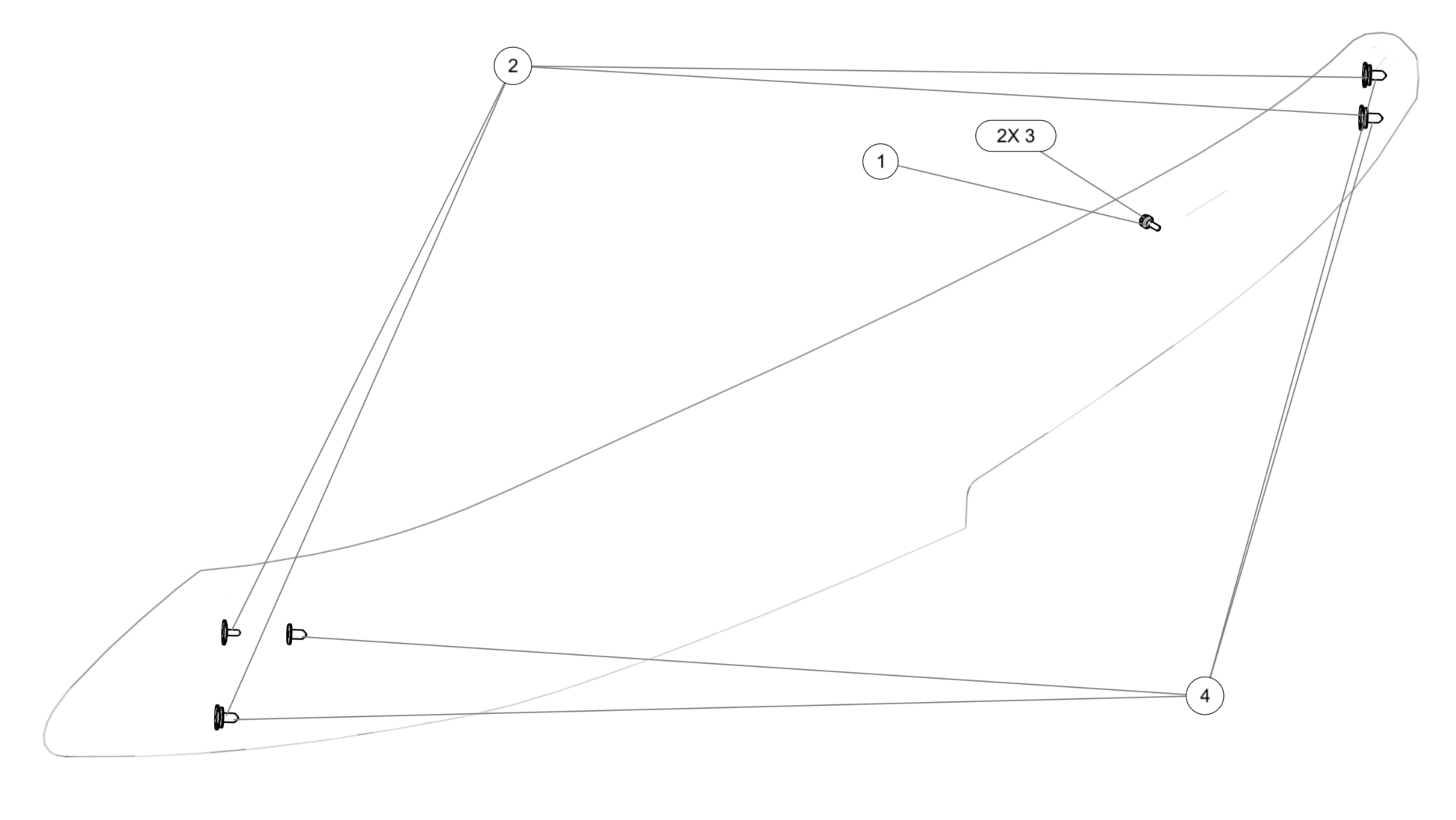

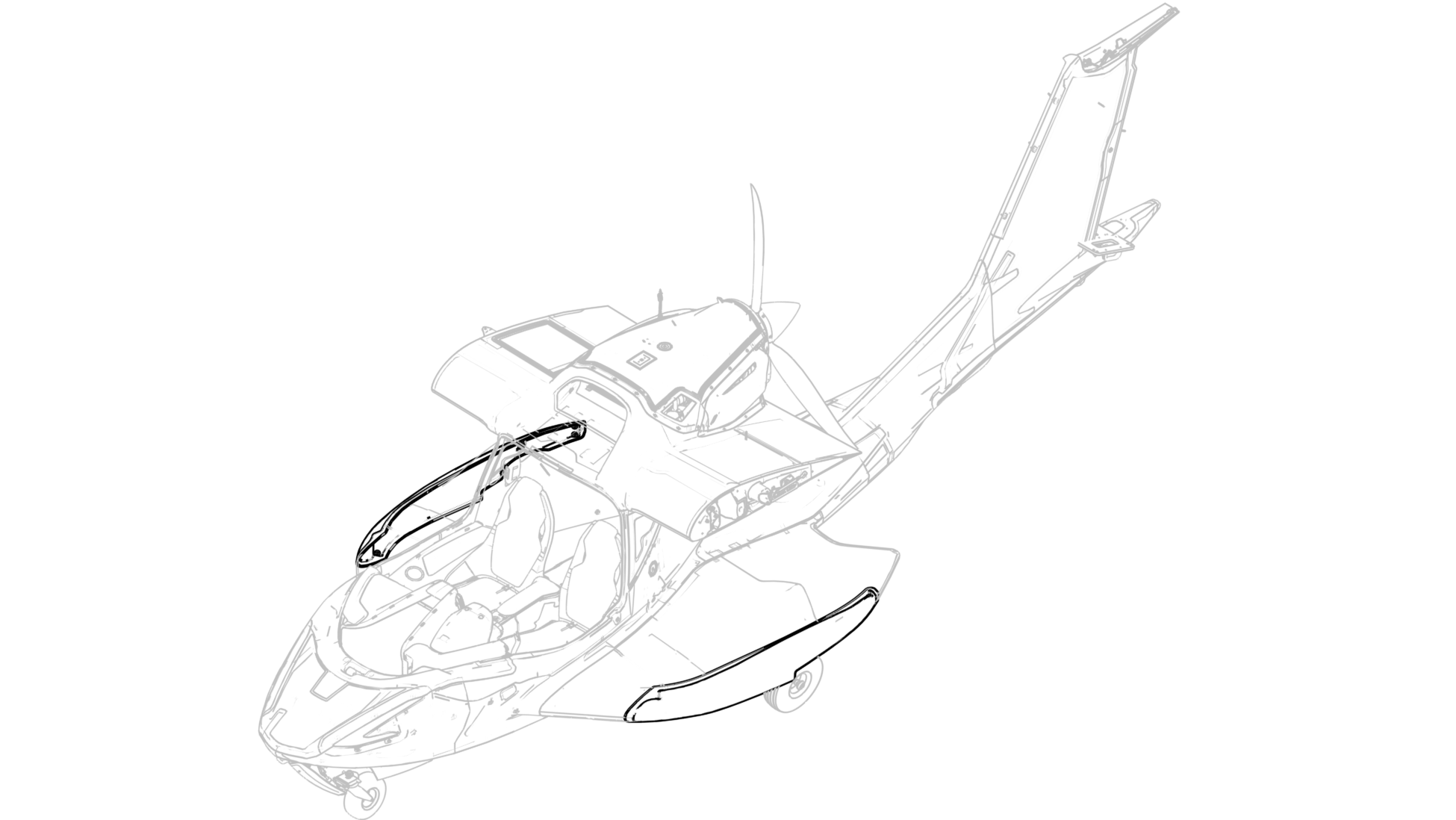

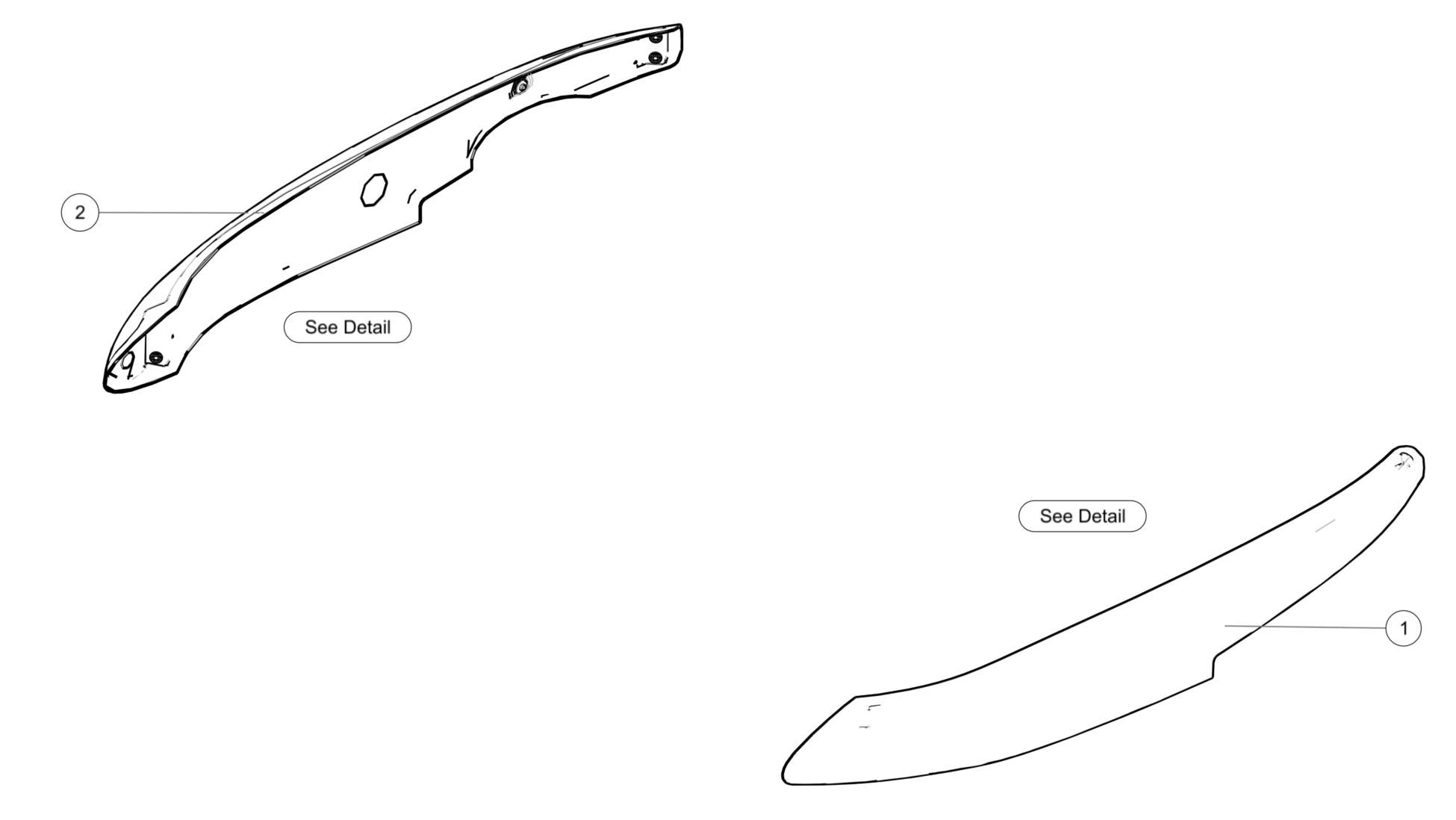

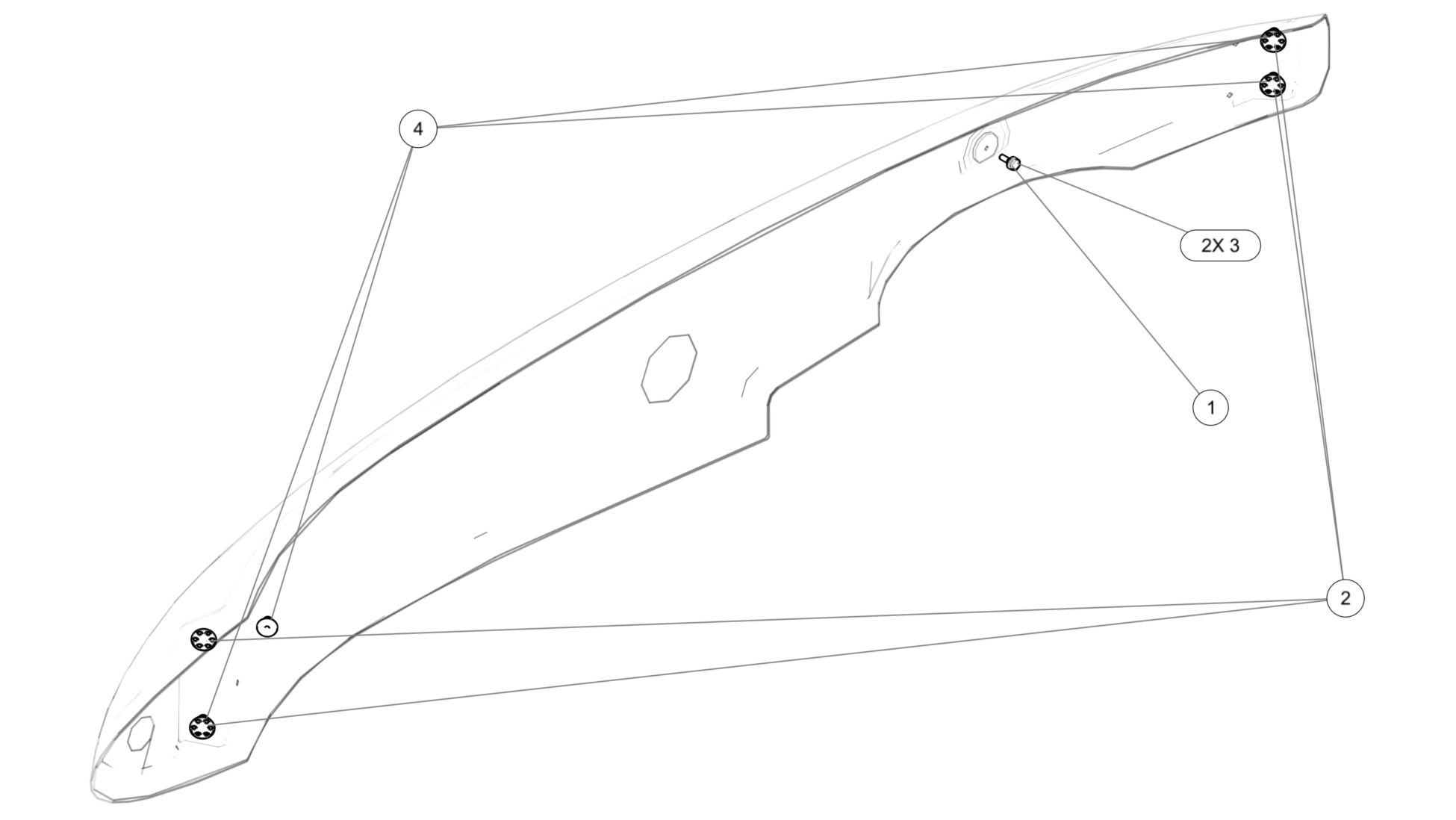

Seawing tip installation into the fuselage.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000840 | PAINTED, SEAWING TIP, LH | 1 | Each | Part provided is painted white only. Requires paint to match adjacent structure livery. |
2 | ME000821 | PAINTED, SEAWING TIP, RH | 1 | Each | Part provided is painted white only. Requires paint to match adjacent structure livery. |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | AN3C5A | BOLT, MACH, CRES, 10-32X.250 | 1 | Each | |
2 | ICA015965 | STUD, NON-THREADED W/BASE, CRES, .1875X.500 | 4 | Each | |
3 | NAS1149C0363R | WASHER, FLAT, CRES, .188X.063, PSVT | 2 | Each | |
4 | ICA013204 | BUSHING, FLANGED, SEALED, COMPOSITE, .19 DIA | 4 | Each | Included in ME000821 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | AN3C5A | BOLT, MACH, CRES, 10-32X.250 | 1 | Each | |
2 | ICA015965 | STUD, NON-THREADED W/BASE, CRES, .1875X.500 | 4 | Each | |
3 | NAS1149C0363R | WASHER, FLAT, CRES, .188X.063, PSVT | 2 | Each | |
4 | ICA013204 | BUSHING, FLANGED, SEALED, COMPOSITE, .19 DIA | 4 | Each | Included in ME000840 |
