Equipment and Furnishings, Seat Belt, Installation
100918-00

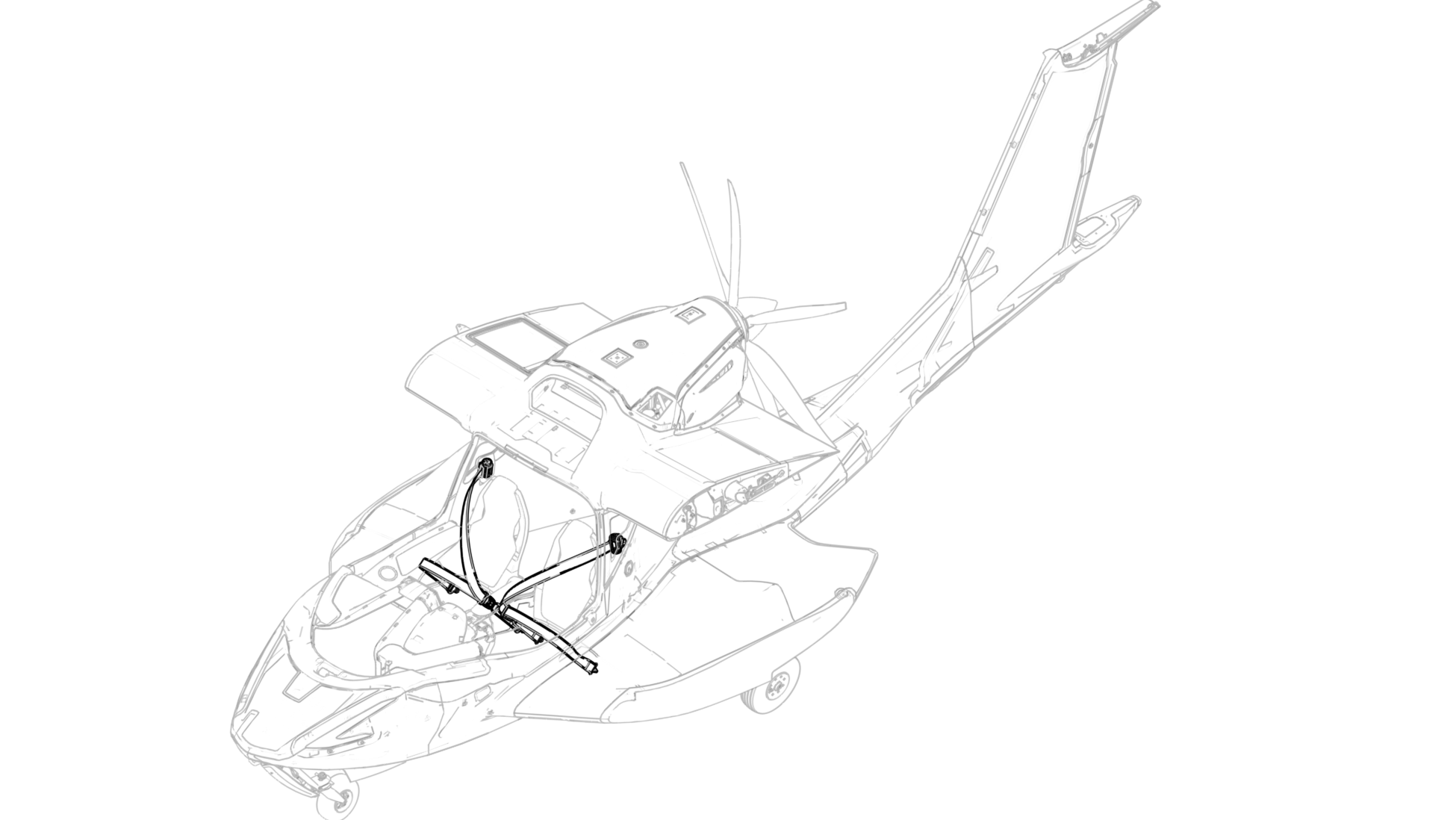

The Seat Belt installation in Equipment and Furnishings.

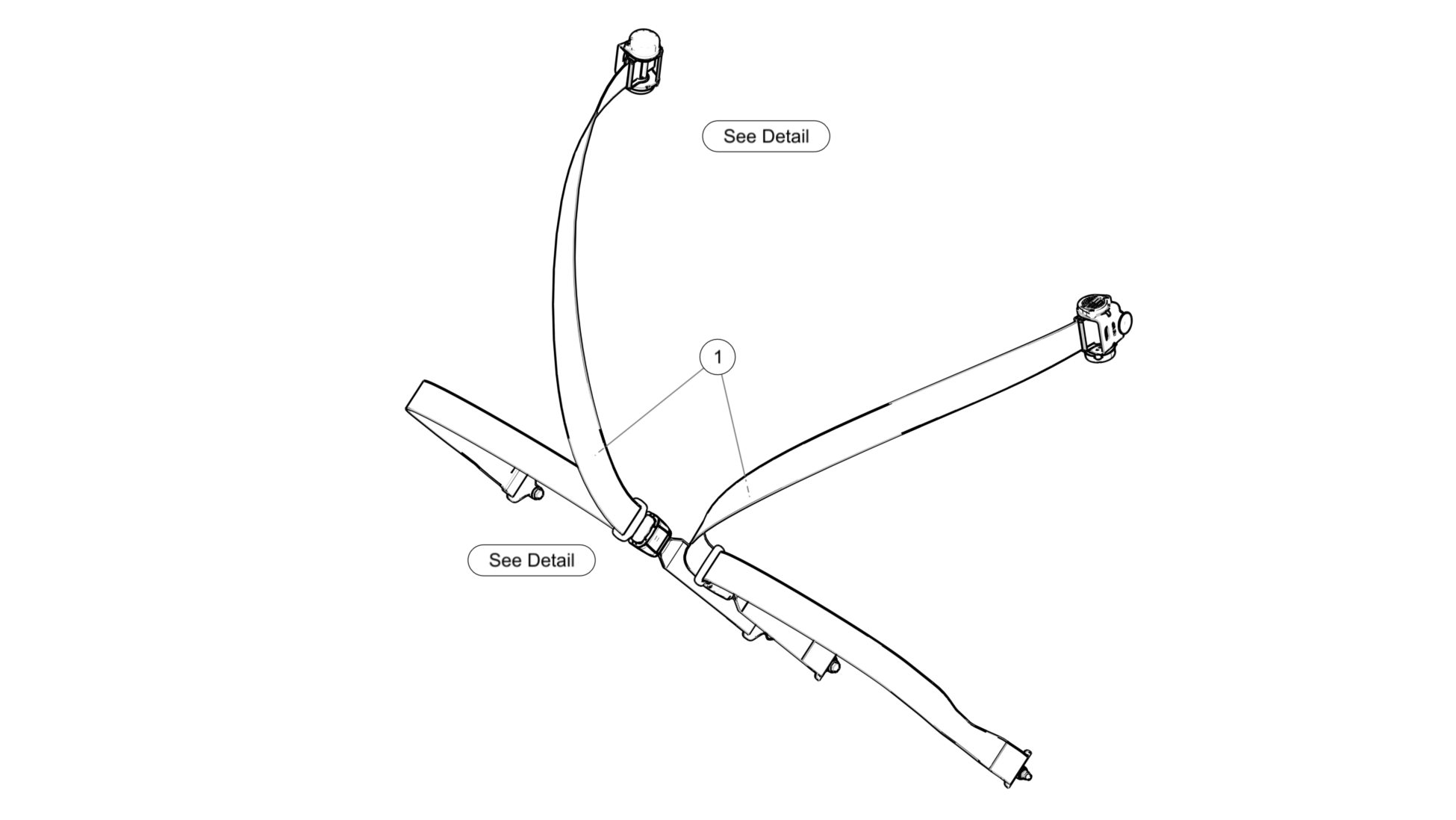

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 200-US-121XX_REVG | BELT, DIAG SHLDR, 3 POINT | 2 | Each |

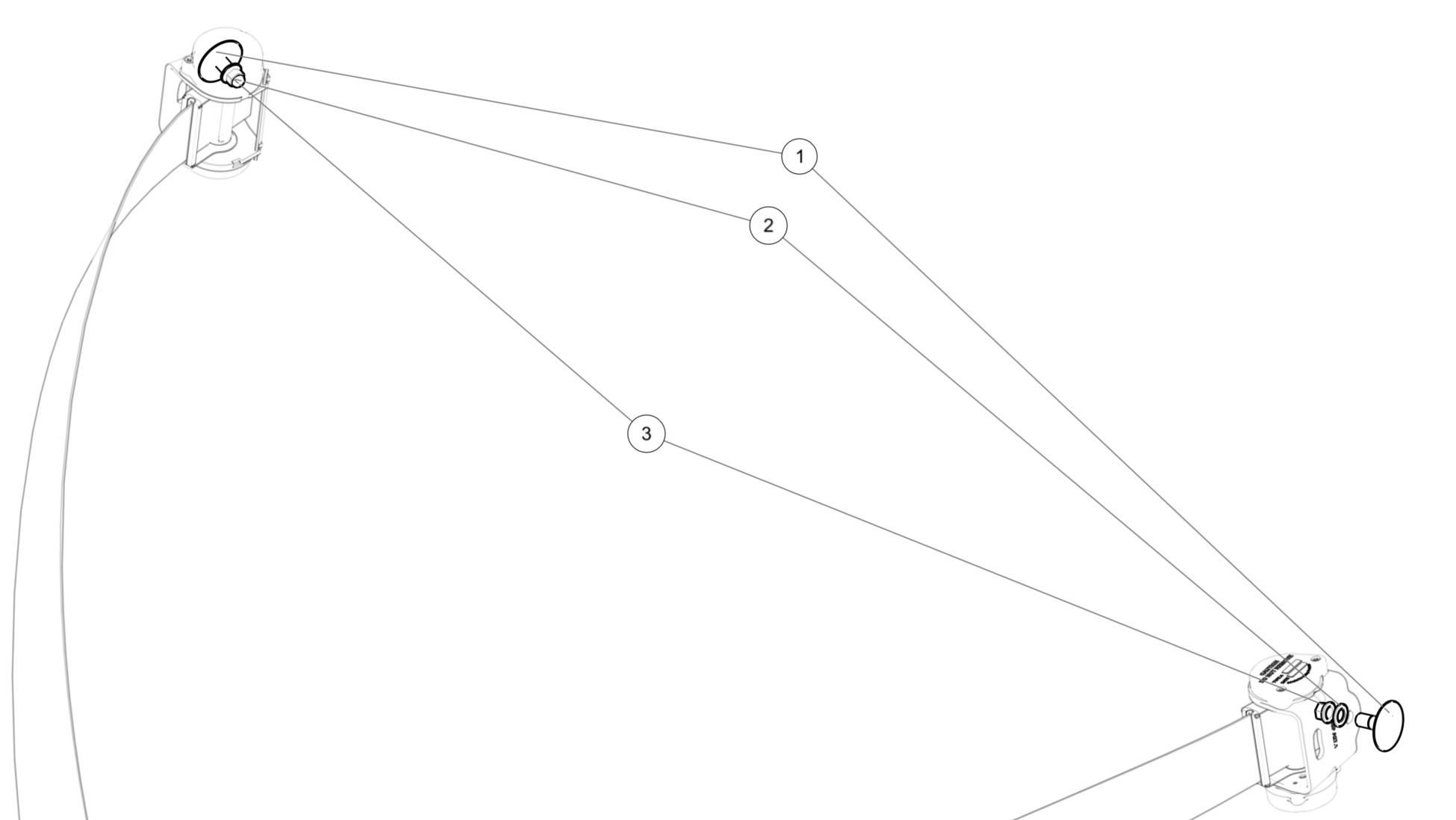

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA015367 | STUD, REVERSE MOUNTED | 2 | Each | |
2 | NAS1149C0532R | WASHER, FLAT, CRES, .312X.032, PSVT | 2 | Each | |
3 | MS21043-5 | NUT, SLFLKG, RDC HEX, CRES, .312-24 | 2 | Each |

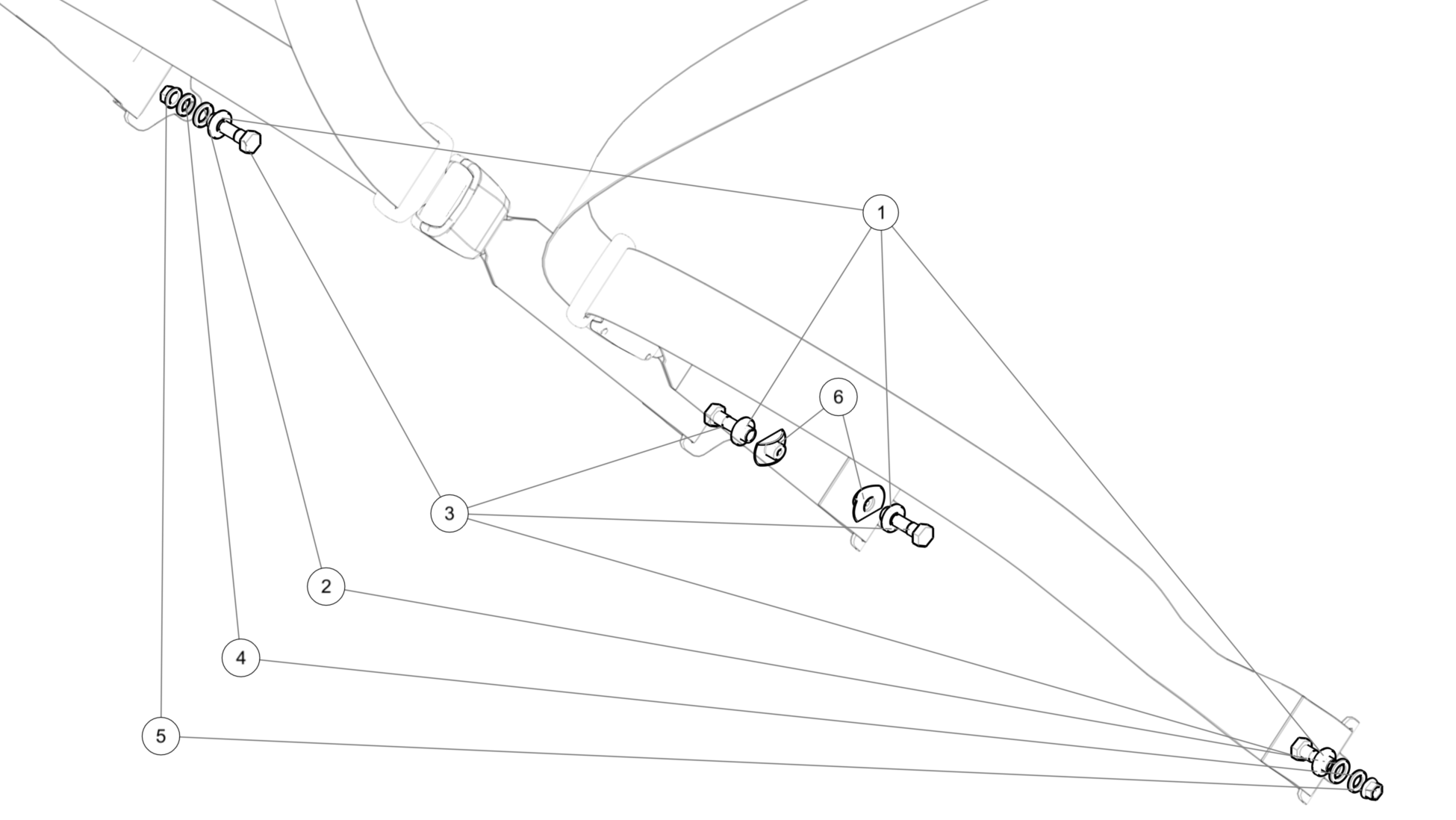

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA001942 | BUSHING, FLANGED, CRES, .313X.365 | 4 | Each | |
2 | NAS1149C0663R | WASHER, FLAT, CRES, .375X.063, PSVT | 2 | Each | |
3 | AN5C6A | BOLT, MACH, CRES, .3125-24X.313 | 4 | Each | |
4 | NAS1149C0563R | WASHER, FLAT, CRES, .312X.063, PSVT | 2 | Each | |
5 | MS21043-5 | NUT, SLFLKG, RDC HEX, CRES, .312-24 | 2 | Each | |
6 | CN609CR5P | NUT PLATE, TWO LUG, ADH BND, .312-24 | 2 | Each |
