Doors and Windows, Access Panel, Exterior
100877-00

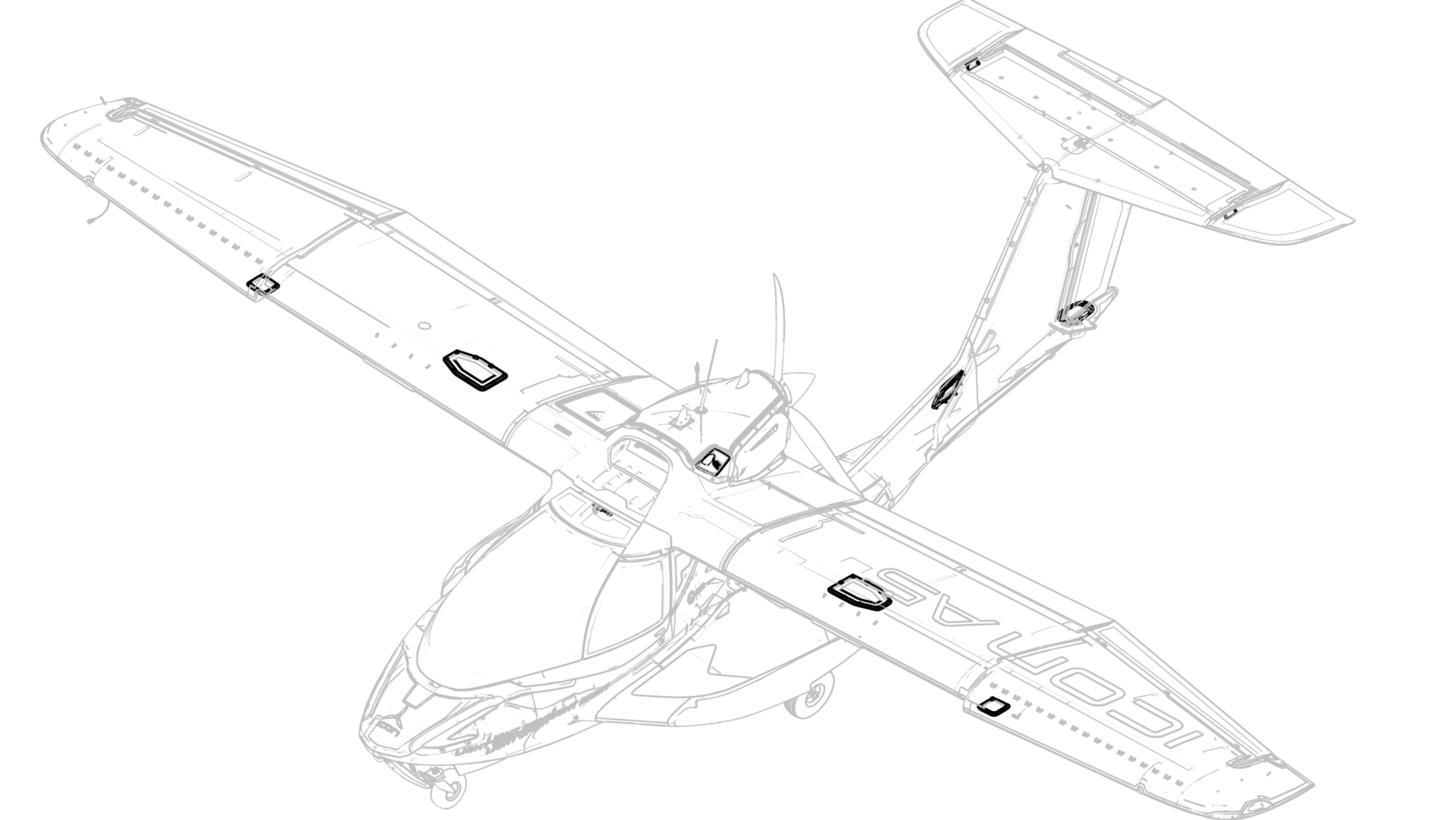

Exterior access panel installation into doors
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | Contact ICON | ACCESS PANEL, AILERON, LH | 1 | Each | |
2 | Contact ICON | ACCESS PANEL, WATER RUDDER | 1 | Each | |
3 | Contact ICON | ACCESS PANEL, AILERON, RH | 1 | Each | |
4 | Contact ICON | ACCESS PANEL, HORIZ TAIL TIP, RH | 1 | Each | Included with Painted Horizontal Tail |
5 | Contact ICON | ACCESS PANEL, WING FOLD, RH | 1 | Each | |
6 | ME000891-PSAPR ME000891-PSVEL ME000891-PSPUR ME000891-PSEBL ME000891-PSEGR ME000891-PSSGY | ACCESS DOOR, OIL | 1 | Each | PSAPR, PSVEL, and PSPUR are interchangeable (white) PSEBL and PSSGY are interchangeable (gray) |
7 | Contact ICON | ACCESS PANEL, HORIZ TAIL TIP, LH | 1 | Each | Included with Painted Horizontal Tail |
8 | Contact ICON | ACCESS PANEL, AIR RUDDER | 1 | Each | |
09 | Contact ICON | ACCESS PANEL, WING FOLD, LH | 1 | Each | |
10 | ME000720 | PAINTED, CANOPY CANOPY ACCESS PANEL | 1 | Each |

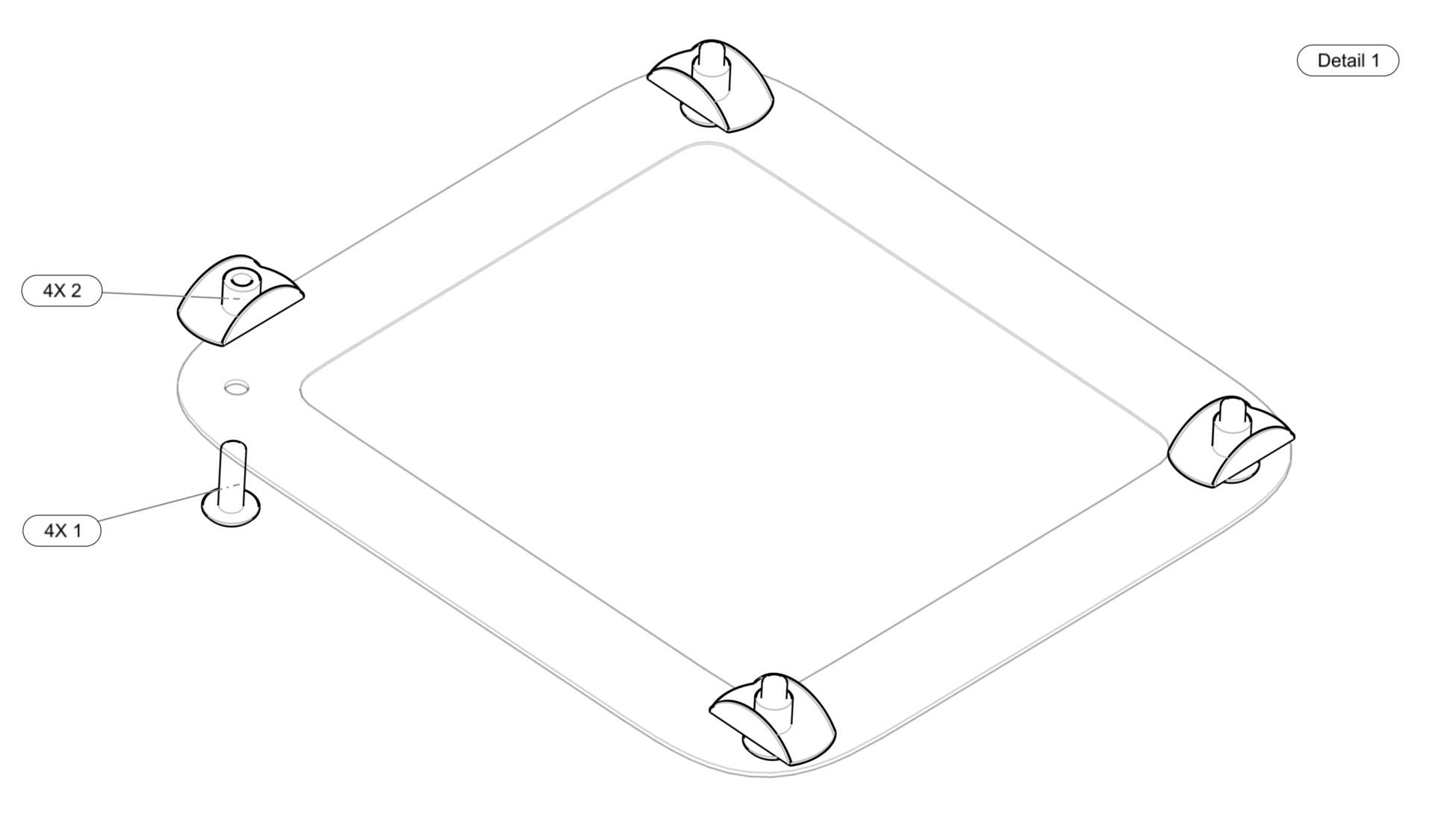

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 4 | Each | |
2 | CN609CR08P | NUT PLATE, TWO LUG, ADH BND, 8-32 | 4 | Each |

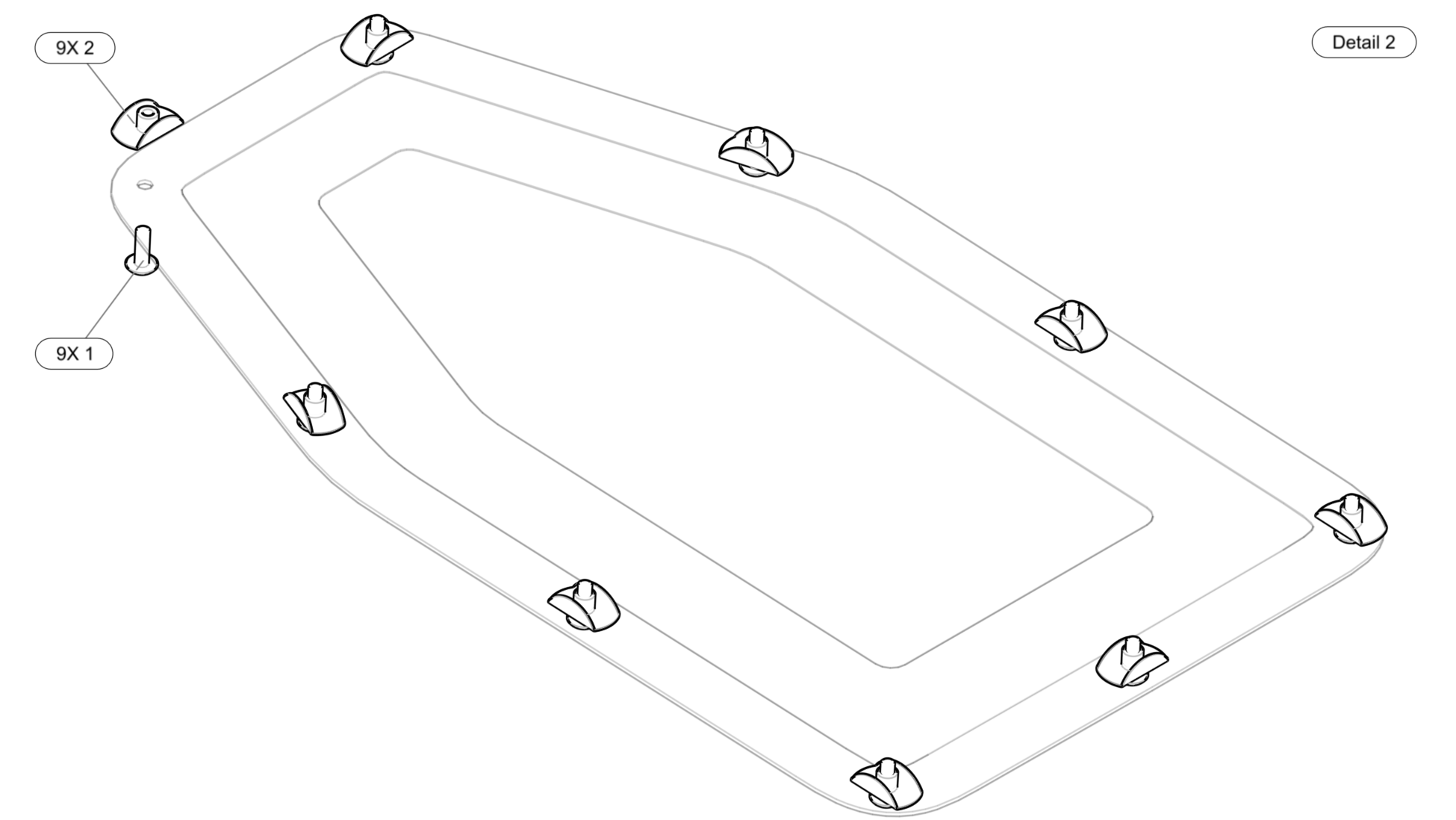

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 9 | Each | |
2 | CN609CR08P | NUT PLATE, TWO LUG, ADH BND, 8-32 | 9 | Each |

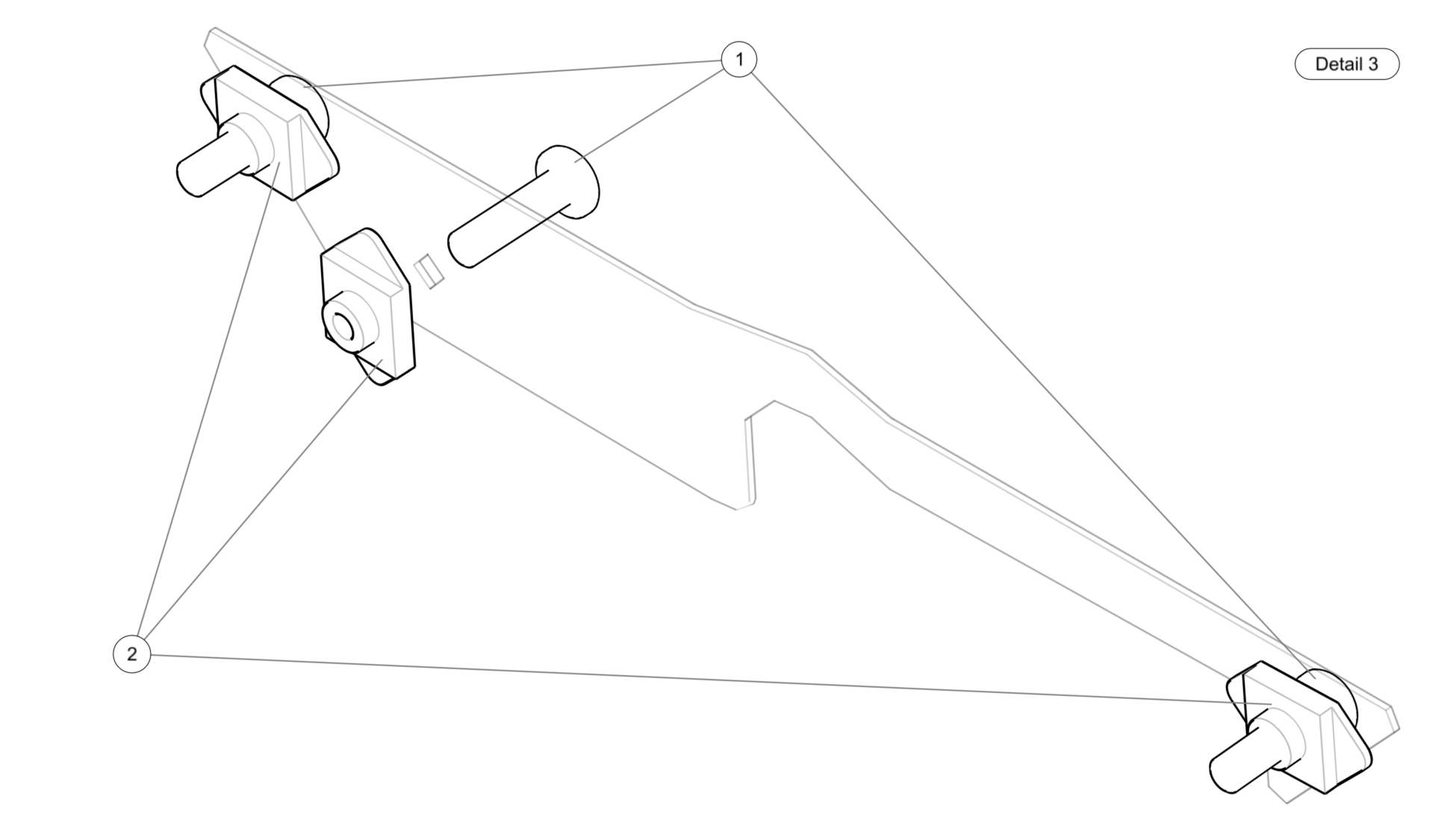

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 96710A261 | SCREW, MACH, 6LOBE, CRES, 6-32X.500 | 3 | Each | |
2 | CN614CR06P | NUT PLATE, MINIATURE, FLOATING, 6-32 | 3 | Each |

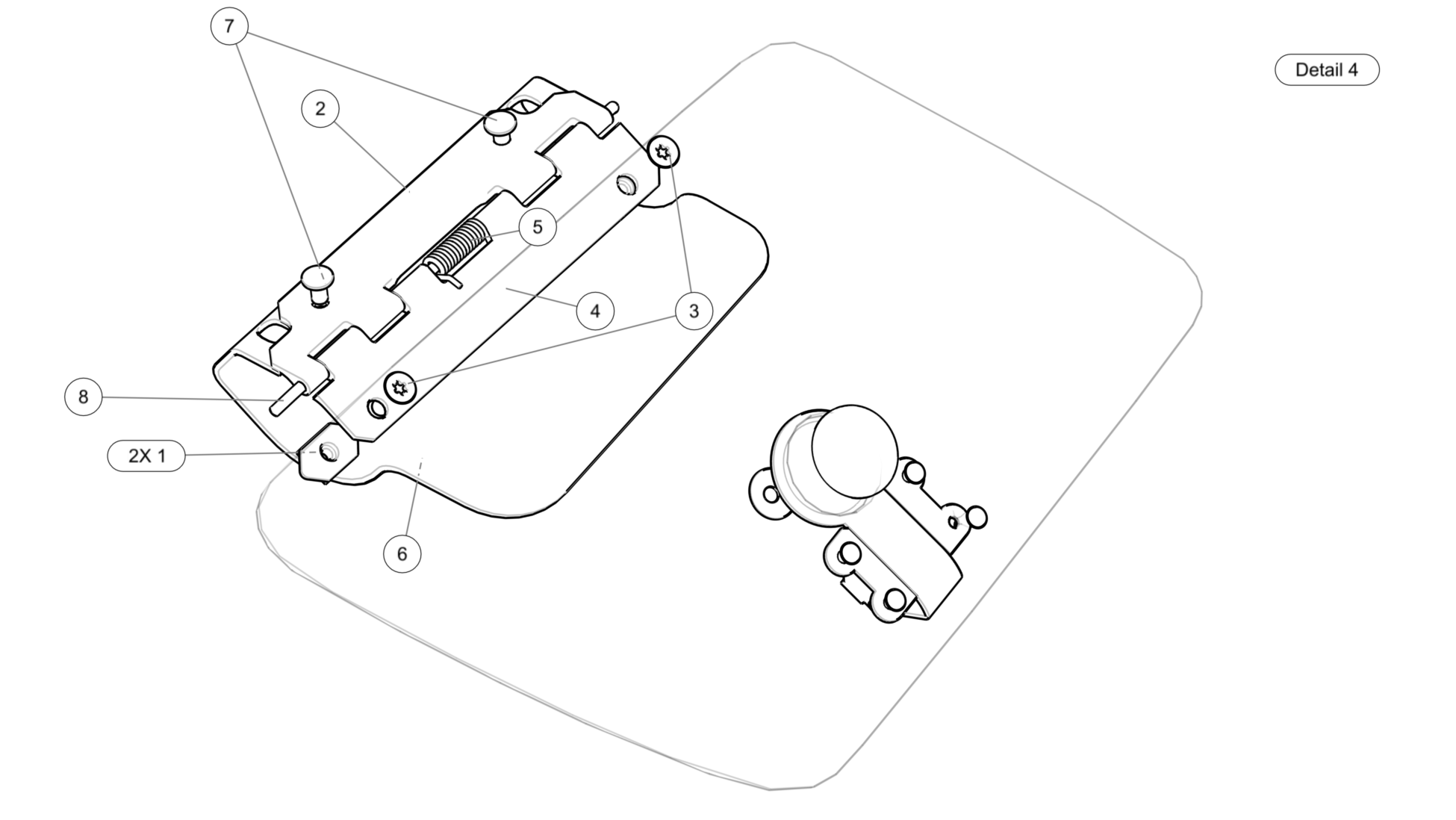

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CN614CR06P | NUT PLATE, MINIATURE, FLOATING, 6-32 | 2 | Each | |
2 | ICA004126 | HINGE PLATE, 4.00, SIDE 2 | 1 | Each | |
3 | 6C50MTF3/100 | SCREW, MACH FLH, 6LOBE, CRES, 6-32X.500 | 2 | Each | |
4 | ICA004125 | HINGE PLATE, 4.00, SIDE 1 | 1 | Each | |
5 | ICA004129 | SPRING, TORSION, CRES, .132X.628X.038 | 1 | Each | |
6 | ICA004127 | GOOSENECK, OIL DOOR | 1 | Each | |
7 | CCR274CS-4-02PR | RIVET, BLIND, UNIV HEAD, CRES, .125X.063-.125 | 2 | Each | |
8 | ICA004128 | HINGE PIN, CRES, 4.70X.090 | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 9 | Each | |
2 | CN609CR08P | NUT PLATE, TWO LUG, ADH BND, 8-32 | 9 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CN609CR08P | NUT PLATE, TWO LUG, ADH BND, 8-32 | 4 | Each | |
2 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 4 | Each |

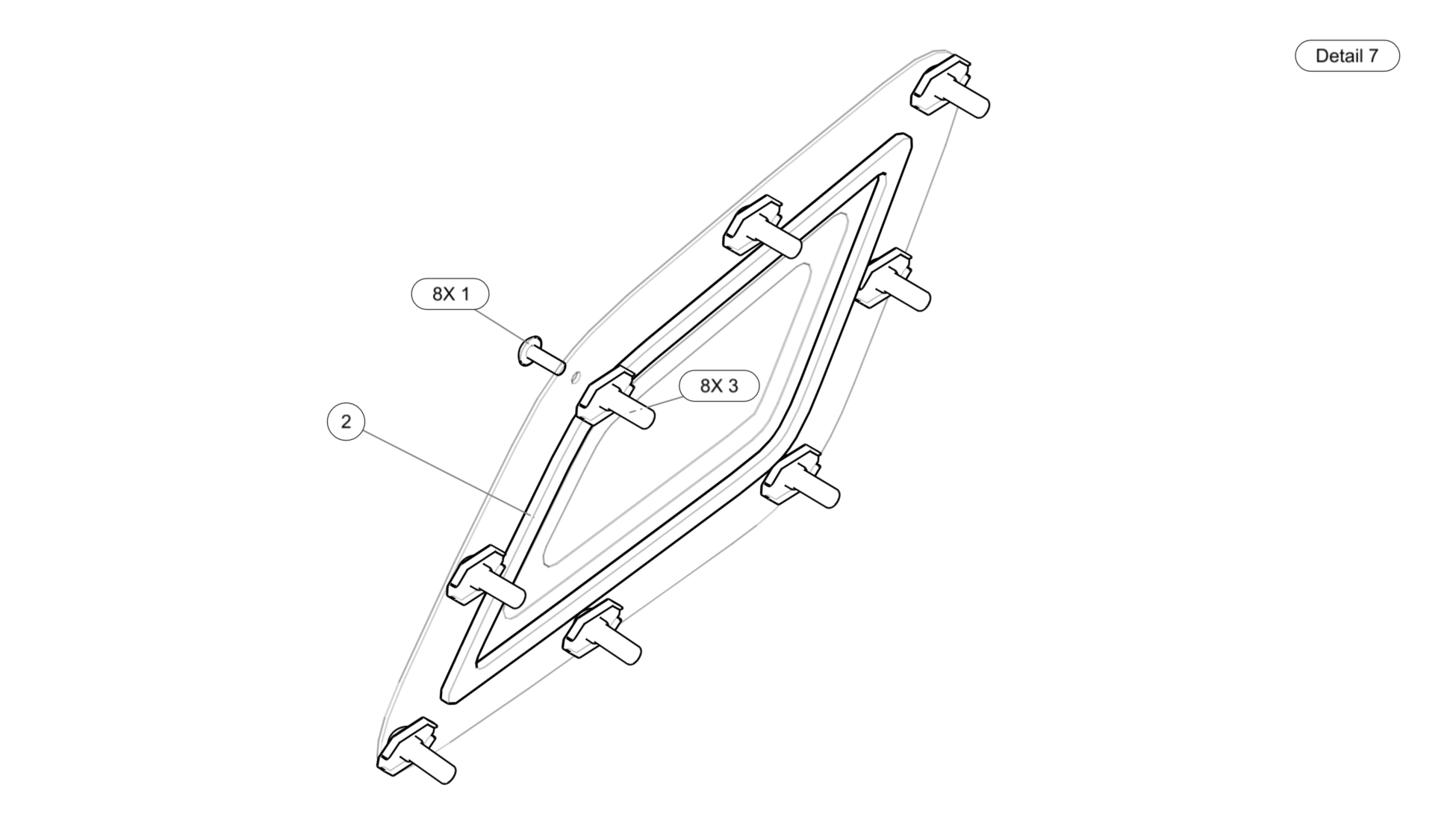

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 8 | Each | |
2 | ICA004121 | SEAL, ACCESS PANEL, WATER RUDDER | 1 | Each | |
3 | CB6010CR08-2PF | NUT PLATE, FLTG, SEALED, CRES, .164-32X.687 | 8 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 7 | Each | |
2 | ICA004122 | SEAL, ACCESS PANEL, AIR RUDDER | 1 | Each | |
3 | CB6010CR08-2PF | NUT PLATE, FLTG, SEALED, CRES, .164-32X.687 | 7 | Each |

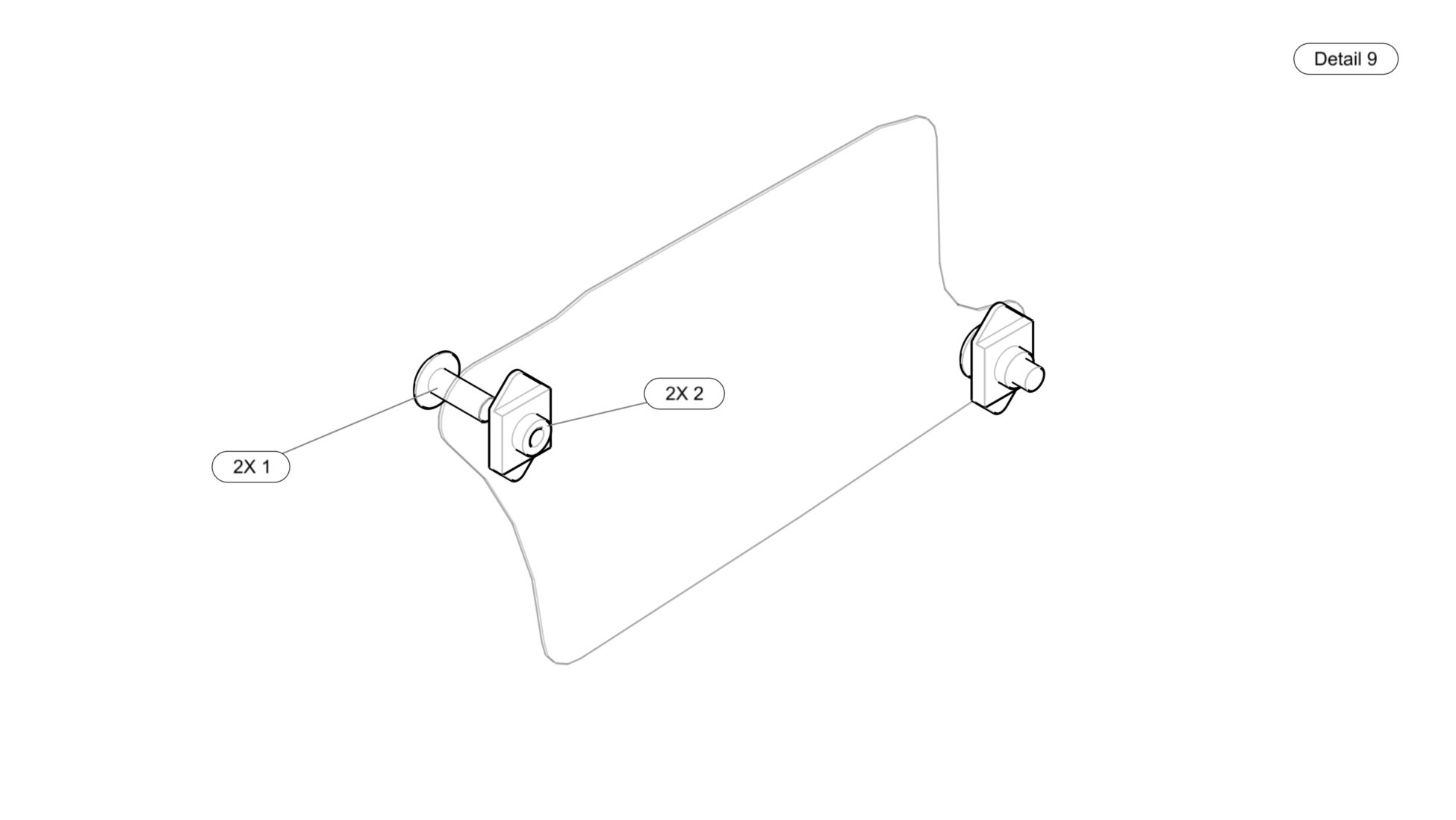

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 6C37MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 6-32X.375 | 2 | Each | |
2 | CN614CR06P | NUT PLATE, MINIATURE, FLOATING, 6-32 | 2 | Each |

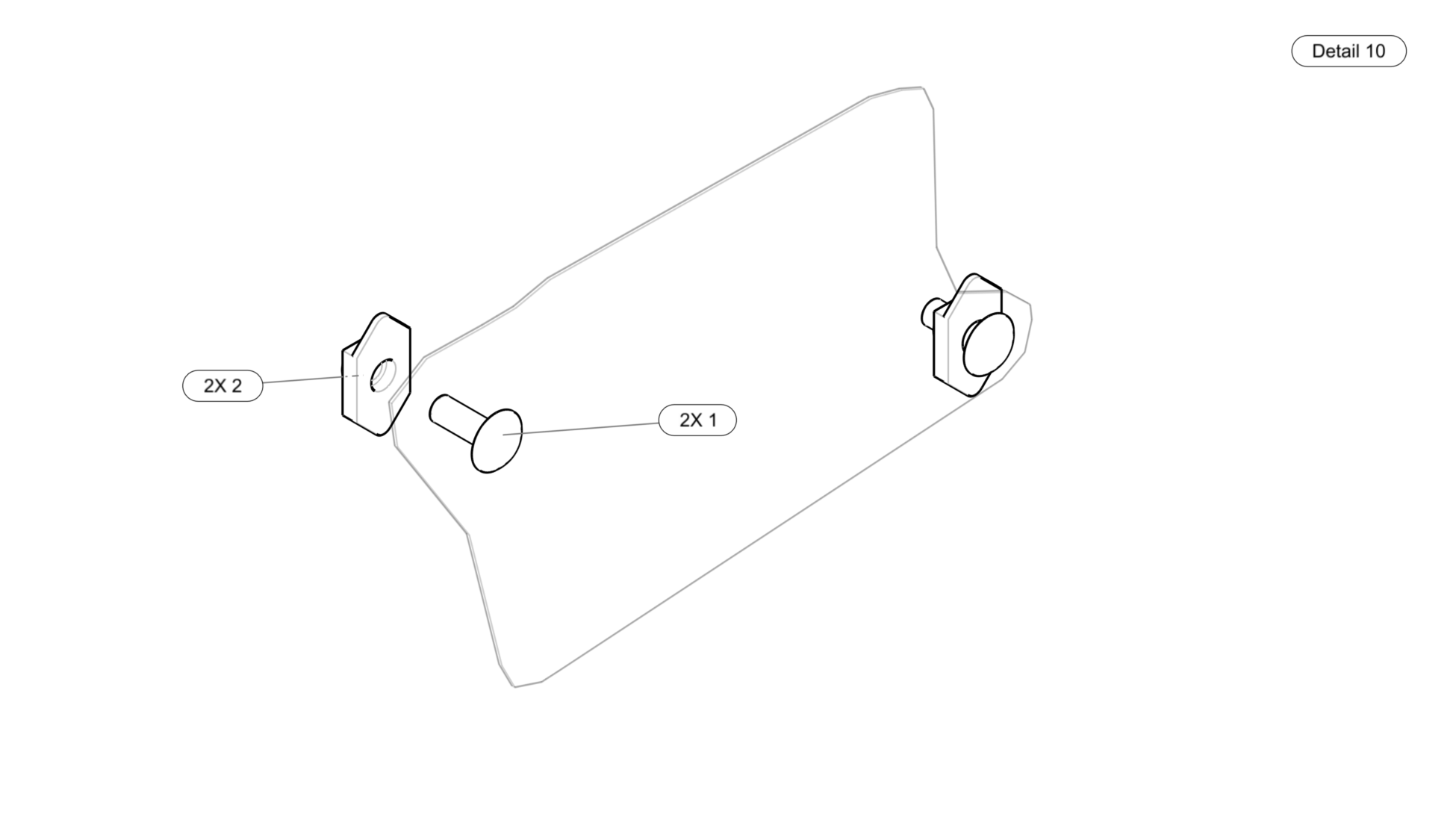

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 6C37MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 6-32X.375 | 2 | Each | |
2 | CN614CR06P | NUT PLATE, MINIATURE, FLOATING, 6-32 | 2 | Each |
