Lighting, Landing and Taxi
100907-00

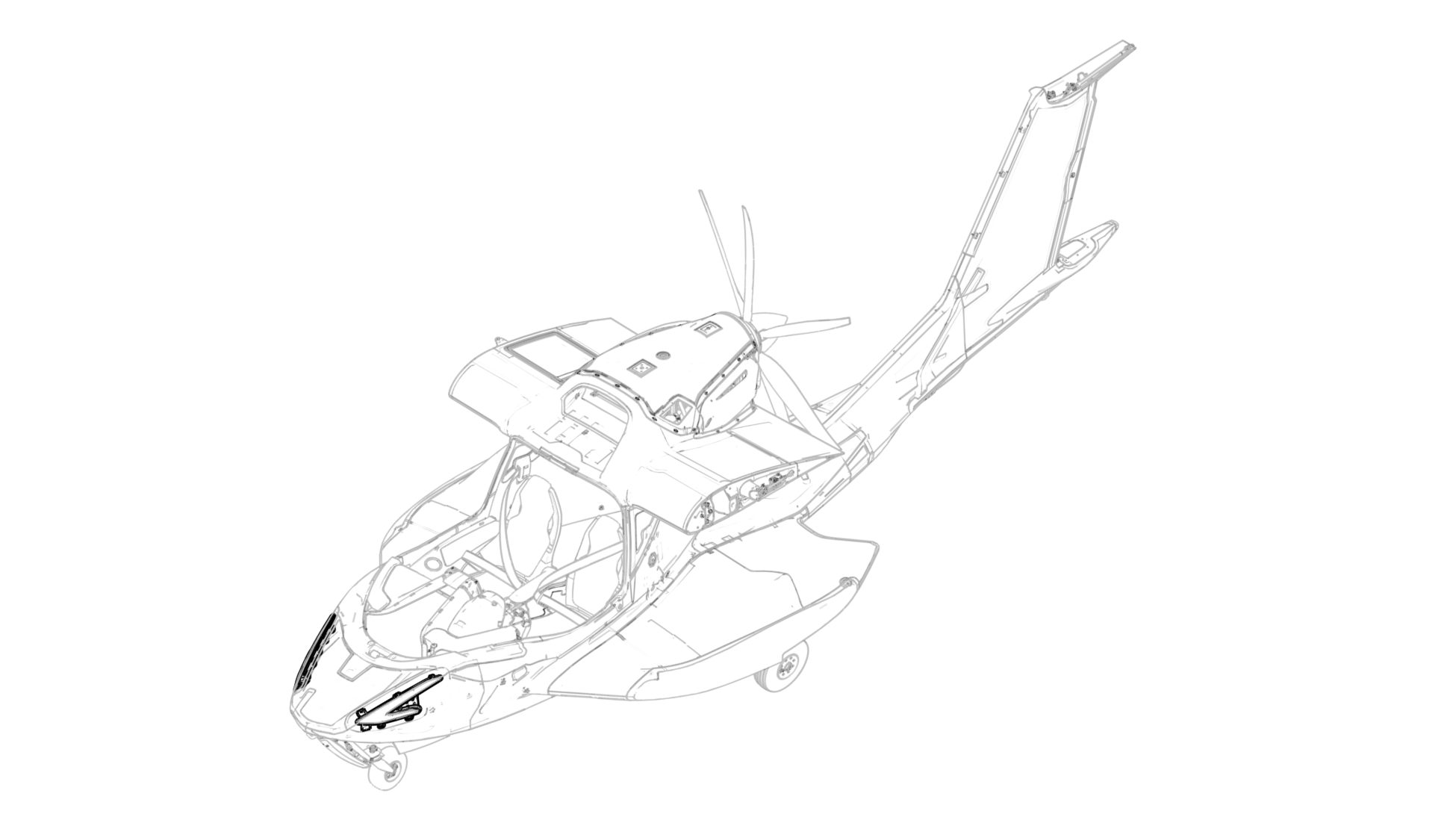

Landing and Taxi lighting installation.

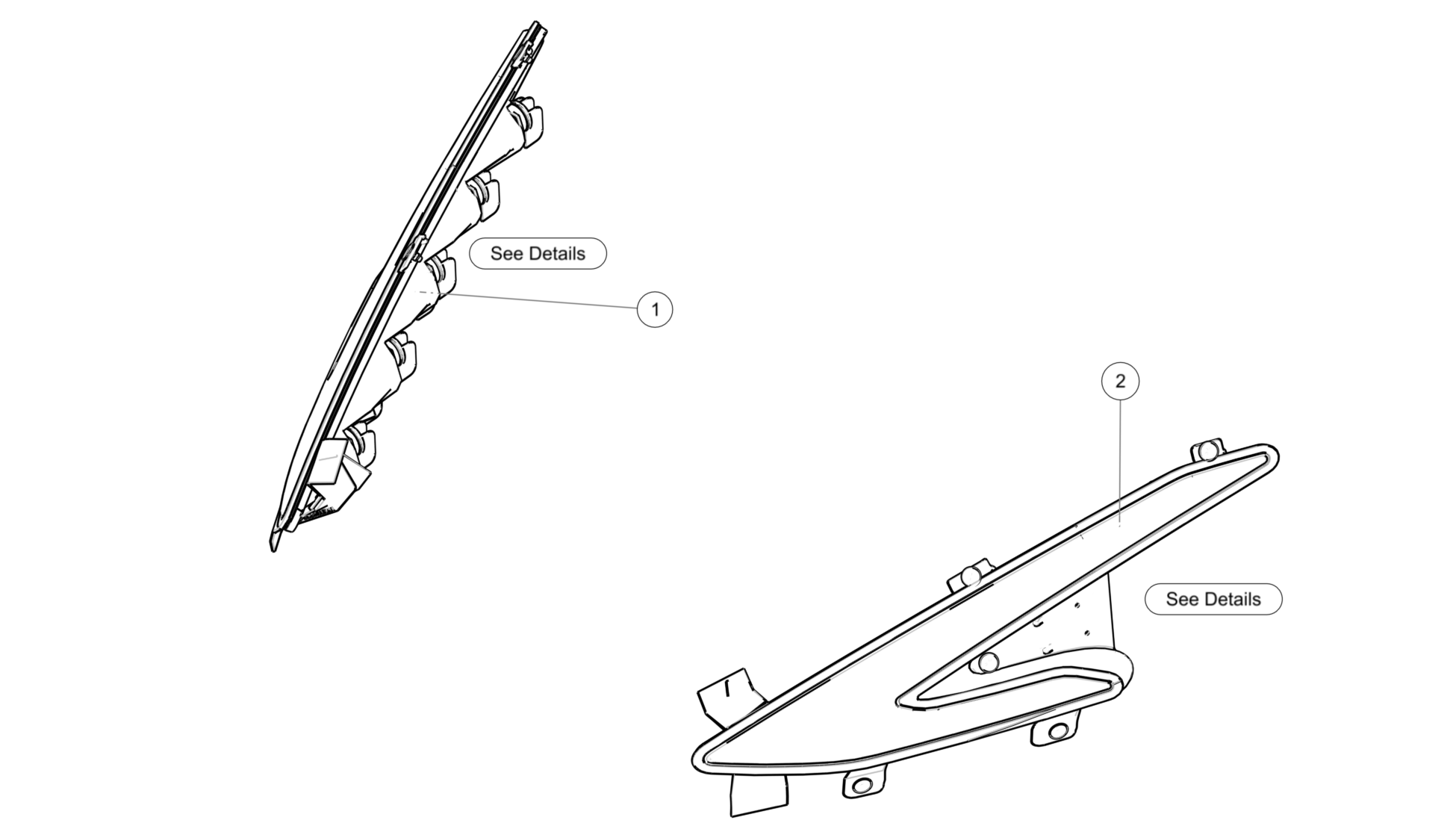

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA014417 | LIGHT, TAXI & LANDING, RH | 1 | Each | |
2 | ICA014418 | LIGHT, TAXI & LANDING, LH | 1 | Each |

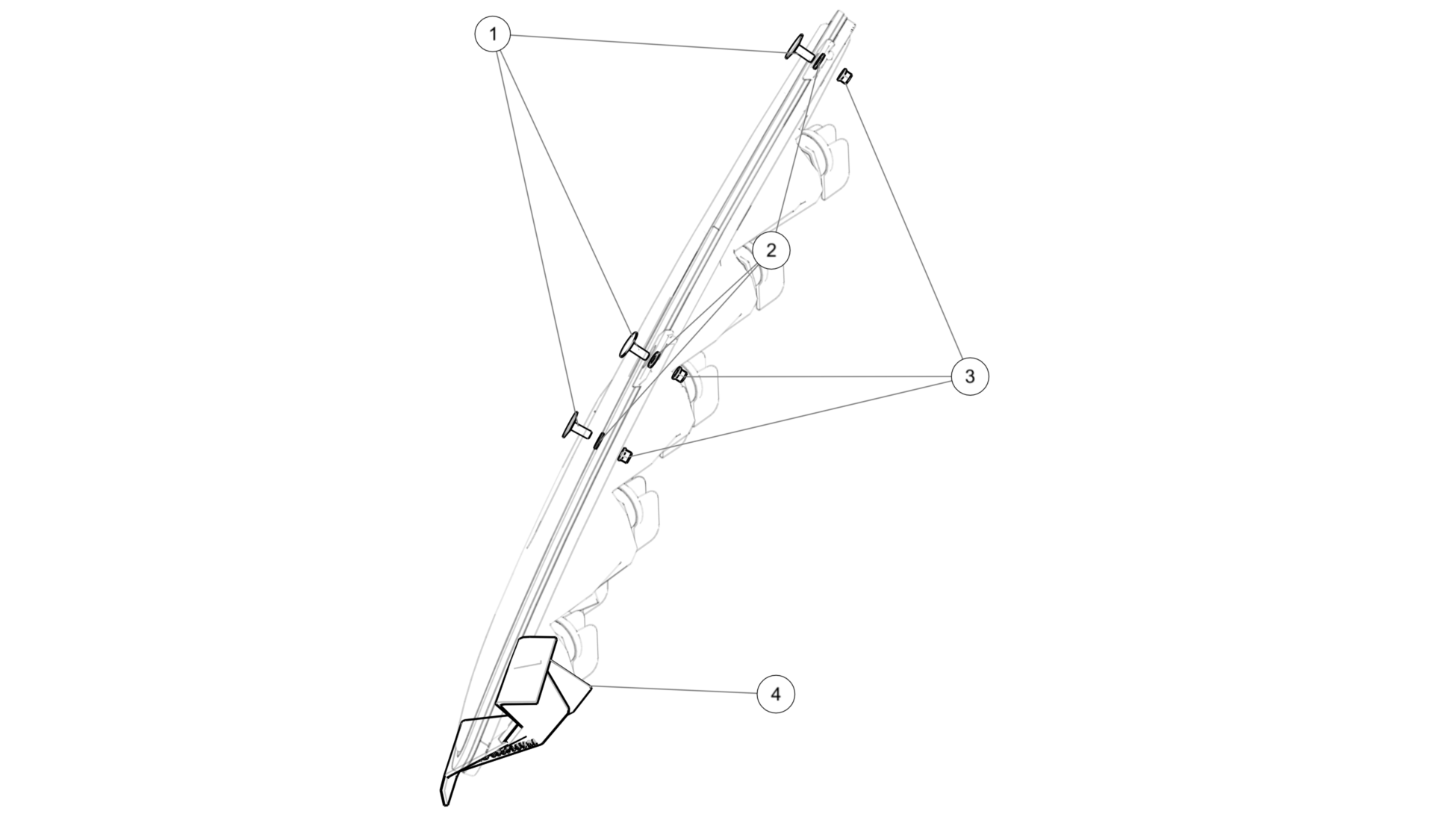

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CB5000CRA08-8P | STUD, ADH BONDED, SMALL BASE, .164-32X.500 | 3 | Each | |
2 | NAS1149CN832R | WASHER, FLAT, CRES, #8X.032, PSVT | 3 | Each | |
3 | MS21043-08 | NUT, SLFLKG, RDC HEX, CRES, 8-32 | 3 | Each | |
4 | ICA014268 | BRACKET, LIGHT, LANDING & TAXI, RH | 1 | Each |

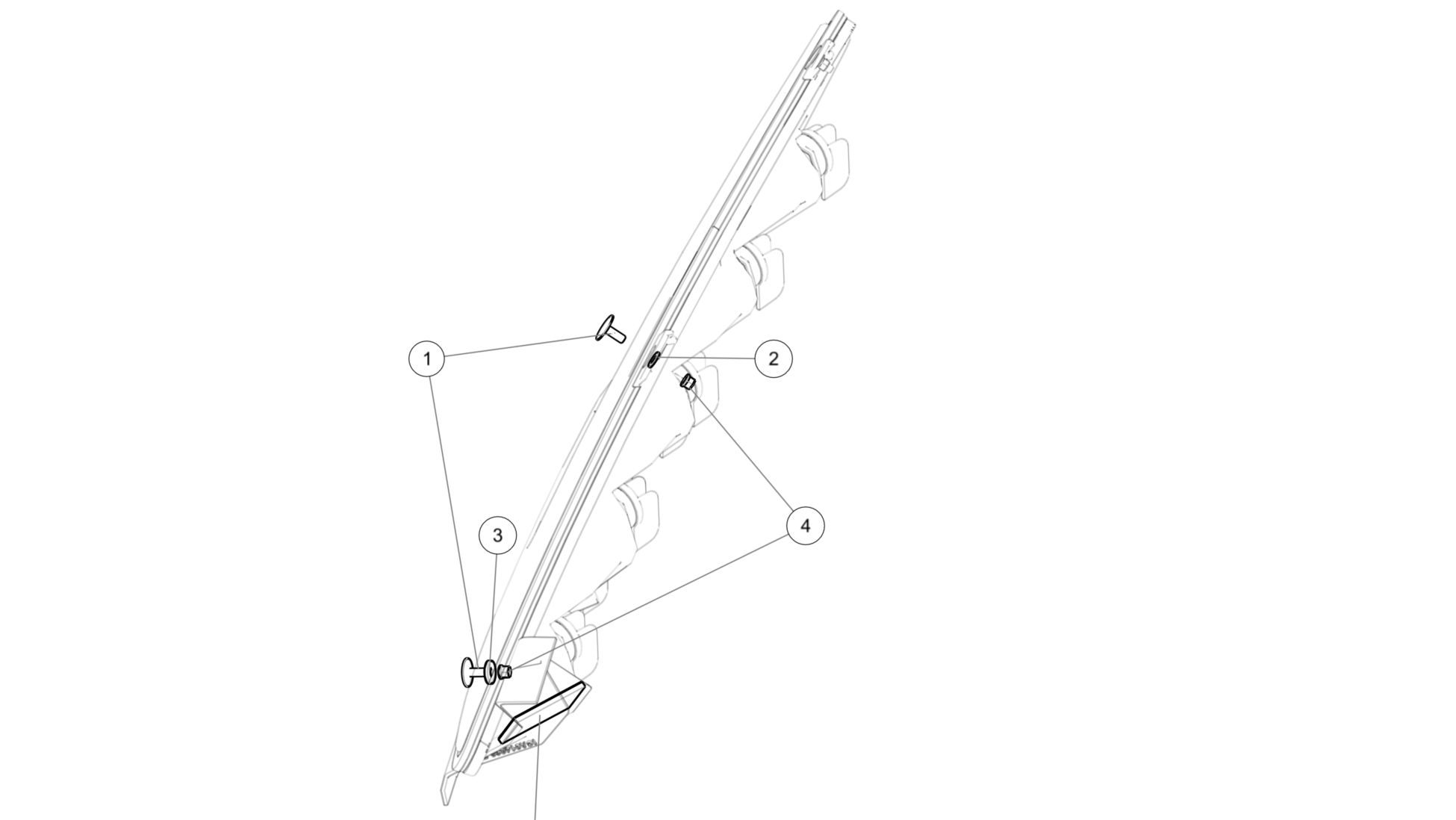

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CB5000CRA08-8P | STUD, ADH BONDED, SMALL BASE, .164-32X.500 | 2 | Each | |
2 | NAS1149CN832R | WASHER, FLAT, CRES, #8X.032, PSVT | 1 | Each | |
3 | ICA014414 | WASHER, OVERSIZED, 316 SS, .172 ID X .5 OD | 1 | Each | |
4 | MS21043-08 | NUT, SLFLKG, RDC HEX, CRES, 8-32 | 2 | Each | |
5 | ICA014321 | FOAM, POLYURETHANE, ADHESIVE BACK, 1 X 2 X .125 | 1 | Each | Alternative Part Number: ICA014458 SHEET, FOAM, POLYURETHANE, RESILIENT (2 sq in) |

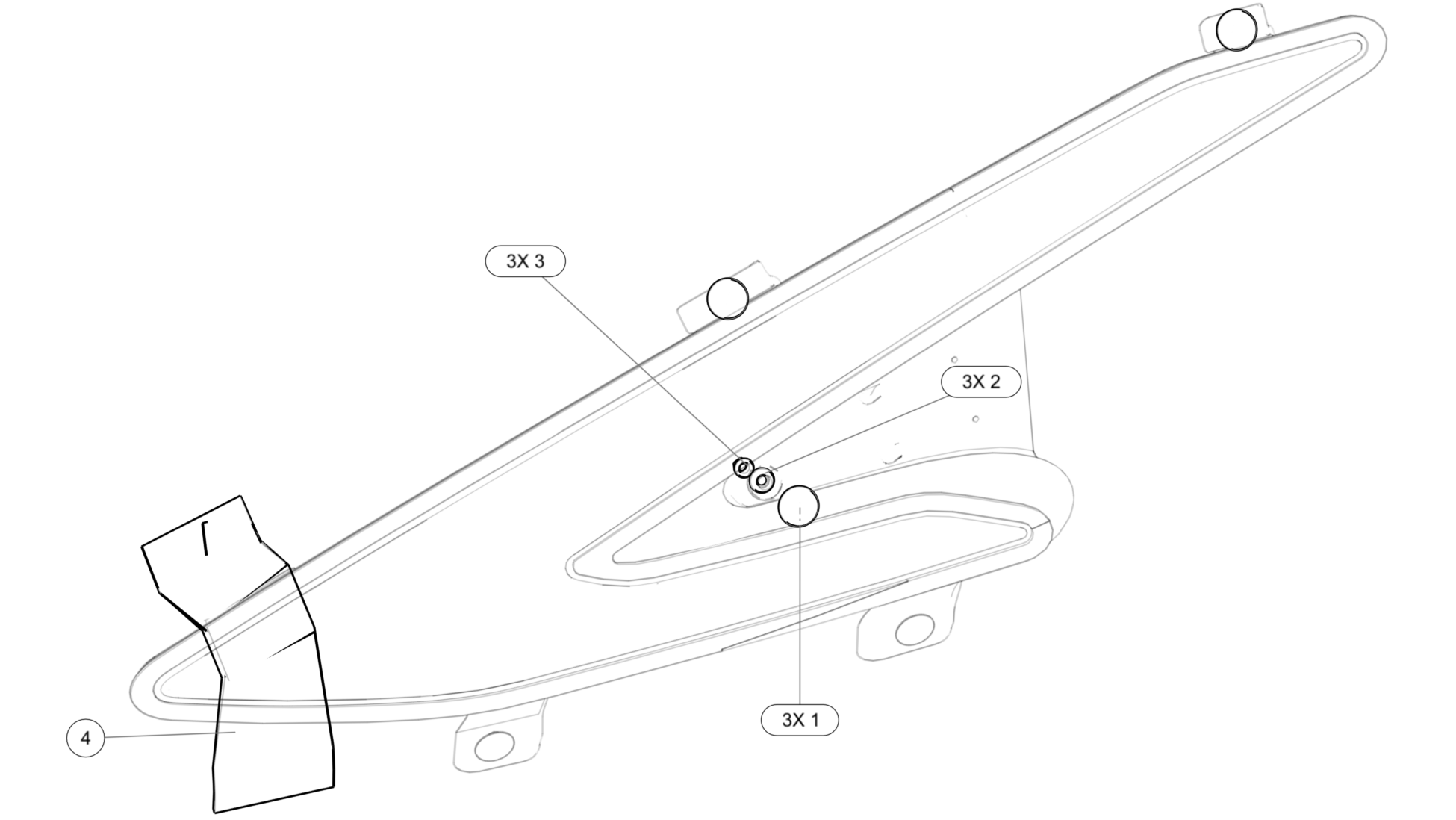

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CB5000CRA08-8P | STUD, ADH BONDED, SMALL BASE, .164-32X.500 | 3 | Each | |
2 | NAS1149CN832R | WASHER, FLAT, CRES, #8X.032, PSVT | 3 | Each | |
3 | MS21043-08 | NUT, SLFLKG, RDC HEX, CRES, 8-32 | 3 | Each | |
4 | ICA014390 | BRACKET, LIGHT, LANDING & TAXI, LH | 1 | Each |

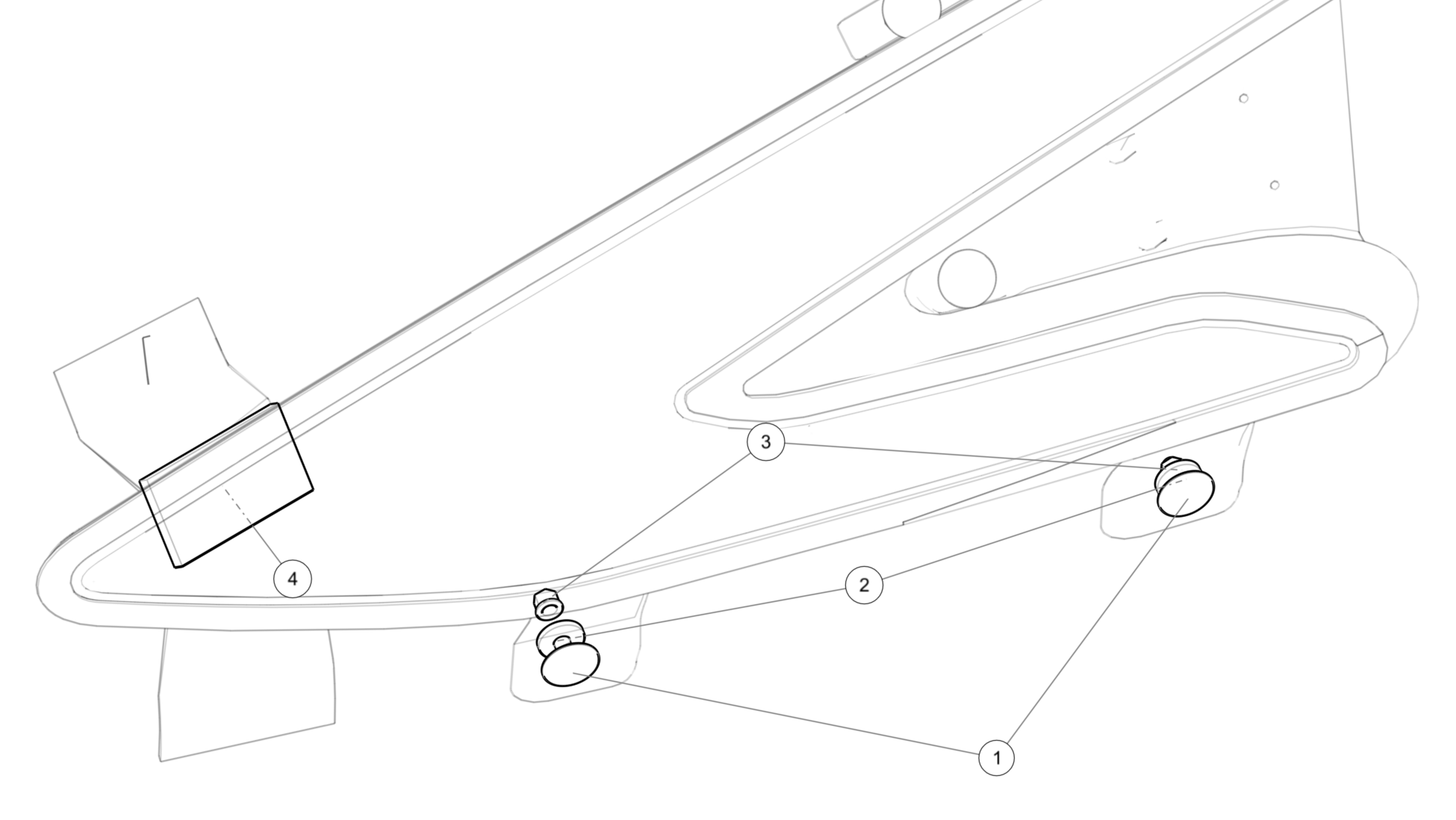

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CB5000CRA08-8P | STUD, ADH BONDED, SMALL BASE, .164-32X.500 | 2 | Each | |
2 | ICA014414 | WASHER, OVERSIZED, 316 SS, .172 ID X .5 OD | 2 | Each | |
3 | MS21043-08 | NUT, SLFLKG, RDC HEX, CRES, 8-32 | 2 | Each | |
4 | ICA014321 | FOAM, POLYURETHANE, ADHESIVE BACK, 1 X 2 X .125 | 1 | Each | Alternative Part Number: ICA014458 SHEET, FOAM, POLYURETHANE, RESILIENT (2 sq in) |
