Fuselage, Tie Down, AFT
100834-00
Aft tie down installation into the fuselage.

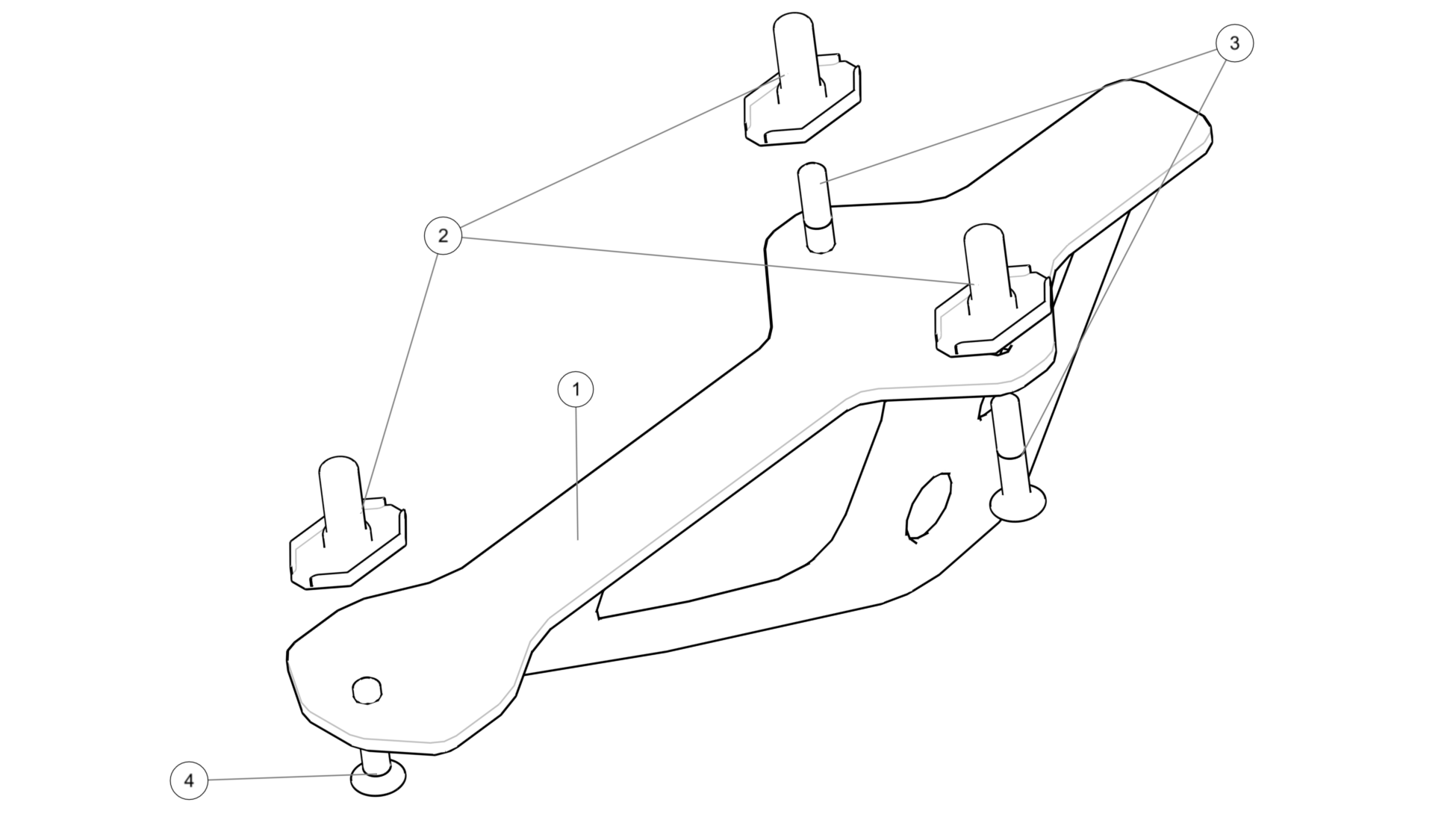

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA008419 | LUG, TIE DOWN & JACKING, TAIL | 1 | Each | |
2 | CN610CR3P | NUT PLATE, FLTG, SEALED, CRES, .190-32X.687 | 3 | Each | |
3 | 10F100MTF3/100/37TL | SCREW, MACH FLH, 6LOBE, CRES, 10-32X1.00X.37 | 2 | Each | |
4 | 10F87MTF3/100 | SCREW, MACH FLH, 6LOBE, CRES, 10-32X.875 | 1 | Each |
