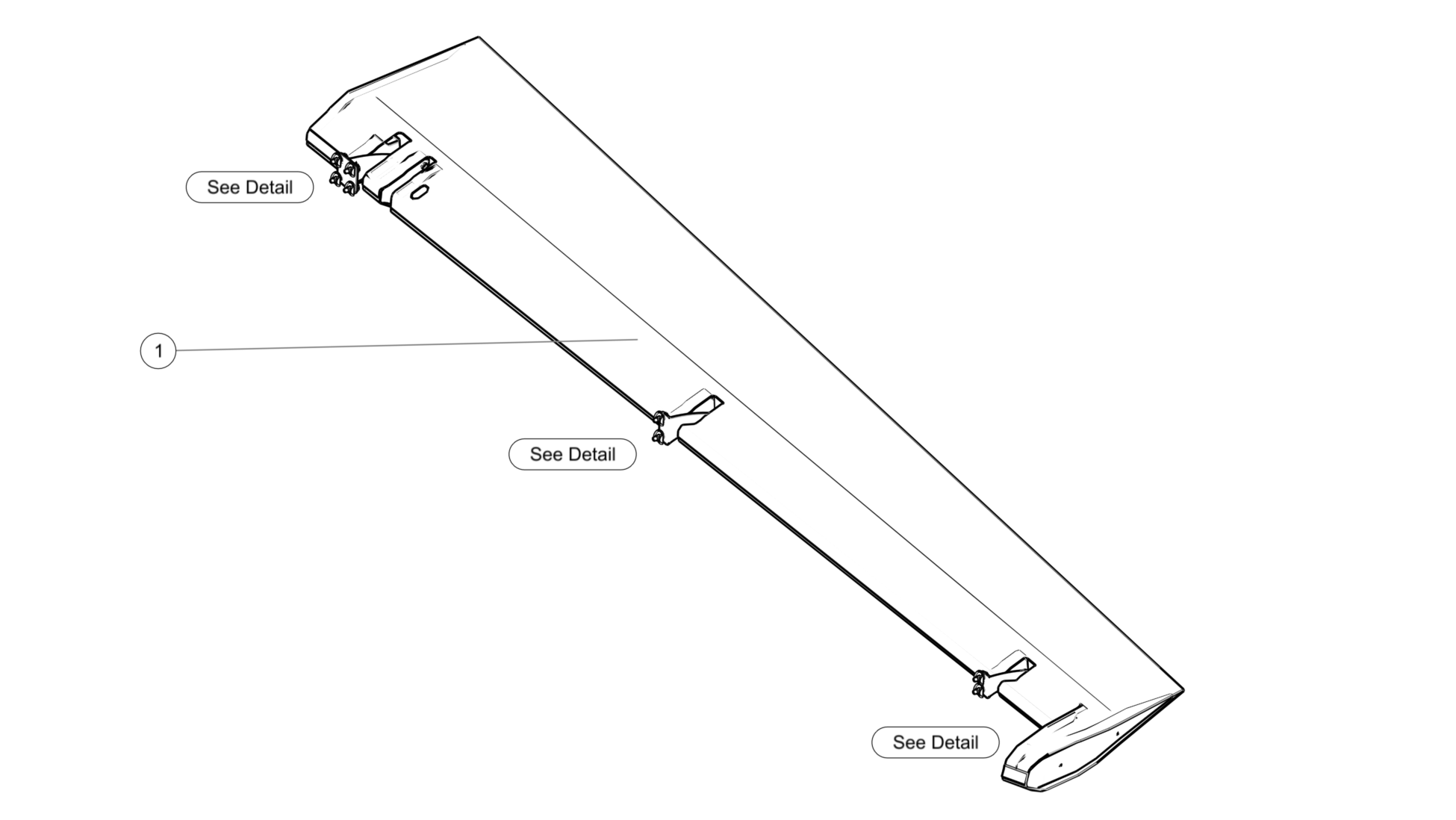

Wing, Control Surface, Aileron, LH
100813-00

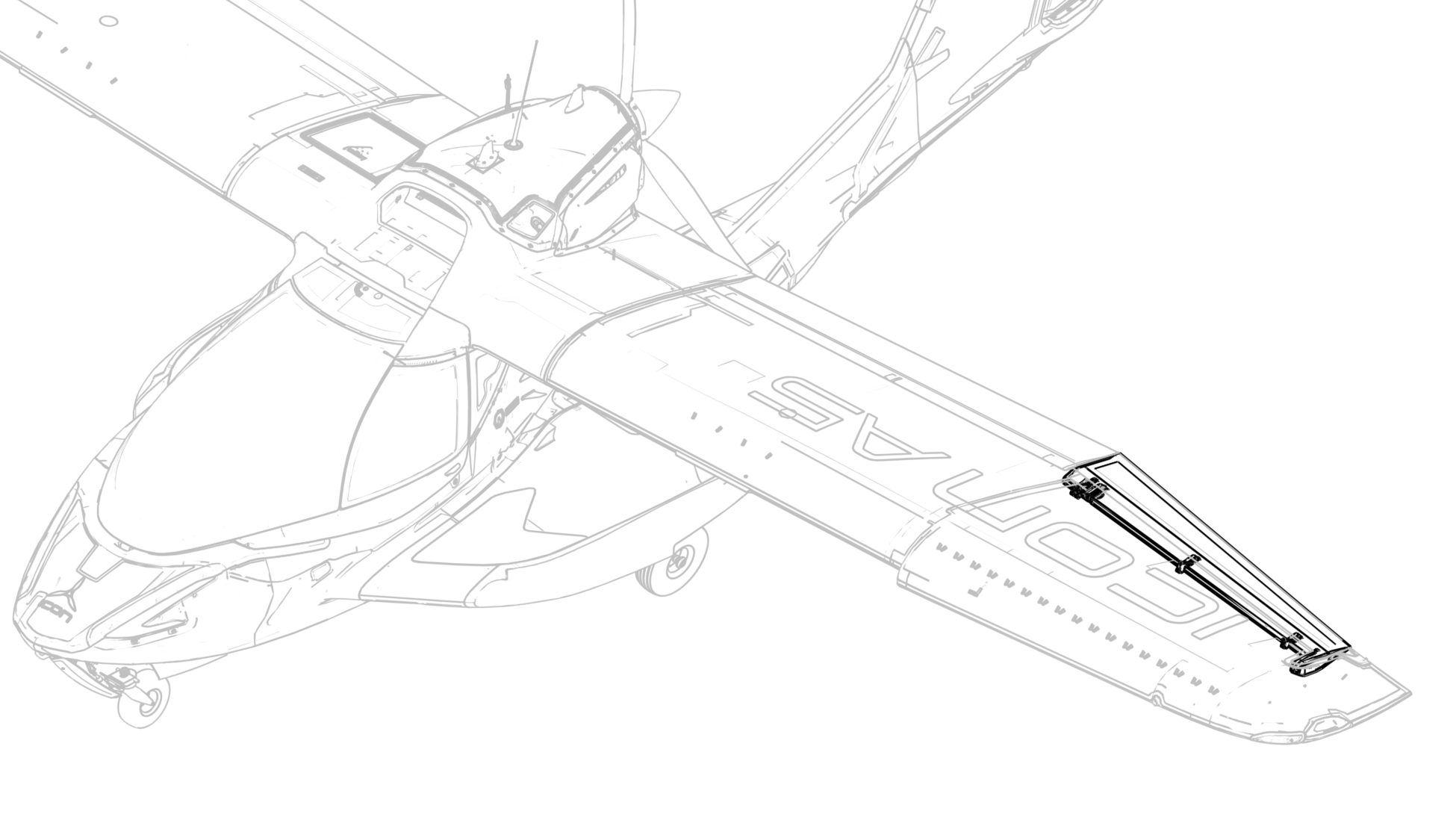

Left-hand side flap control surface installation onto wing.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000559 | LH AILERON BALANCE | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

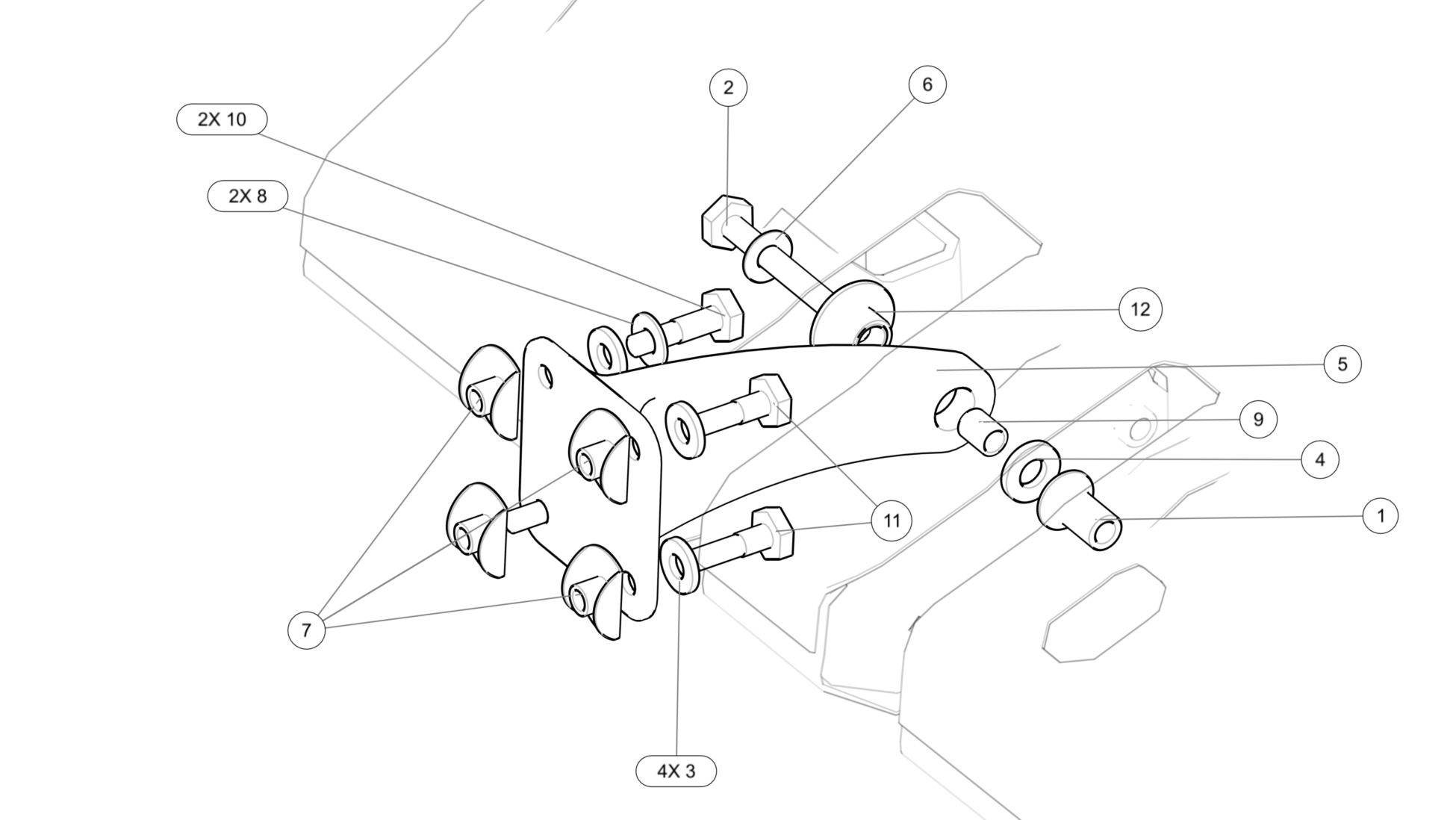

1 | ICA008886 | SPACER, AILERON HINGE, INBD | 1 | Each | |
2 | AN3C16A | BOLT, MACH, CRES, 10-32X1.375 | 1 | Each | |
3 | NAS1149C0363R | WASHER, FLAT, CRES, .188X.063, PSVT | 4 | Each | |
4 | 95630A242 | WASHER, FLAT, PTFE, .250X.500X.057-.067 | 1 | Each | |
5 | ME001038 | HINGE, AILERON, INBD-LH, SUBASSY | 1 | Each | |
6 | NAS1149C0316R | WASHER, FLAT, CRES, .188x.016, PSVT | 1 | Each | |
7 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 4 | Each | |
8 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 2 | Each | |
9 | ICA008887 | BUSHING, CRES, .190X.250X.340 | 1 | Each | |
10 | AN3C6A | BOLT, MACH, CRES, 10-32X.375 | 2 | Each | |
11 | AN3C5A | BOLT, MACH, CRES, 10-32X.250 | 2 | Each | |
12 | M81934/2-04C008 | BEARING, SLEEVE, FLGD, SLFLBR, CRES, .250X.250 | 1 | Each | Included in ME001038 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

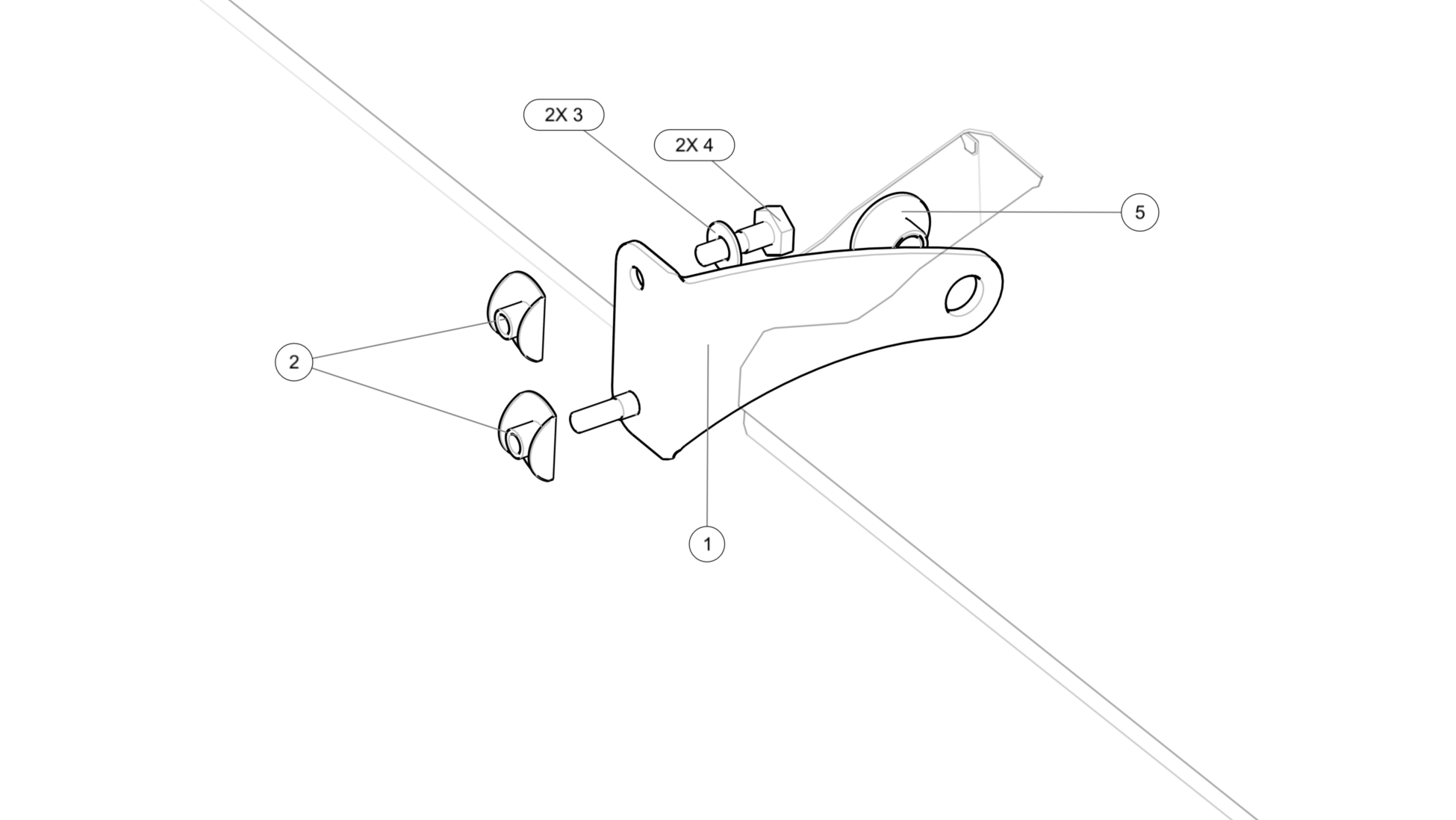

1 | ME001030 | HINGE, AILERON, CTR-LH, SUBASSY | 1 | Each | |
2 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 2 | Each | |
3 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 2 | Each | |
4 | AN3C5A | BOLT, MACH, CRES, 10-32X.250 | 2 | Each | |
5 | M81934/2-04C008 | BEARING, SLEEVE, FLGD, SLFLBR, CRES, .250X.250 | 1 | Each | Included in ME001030 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

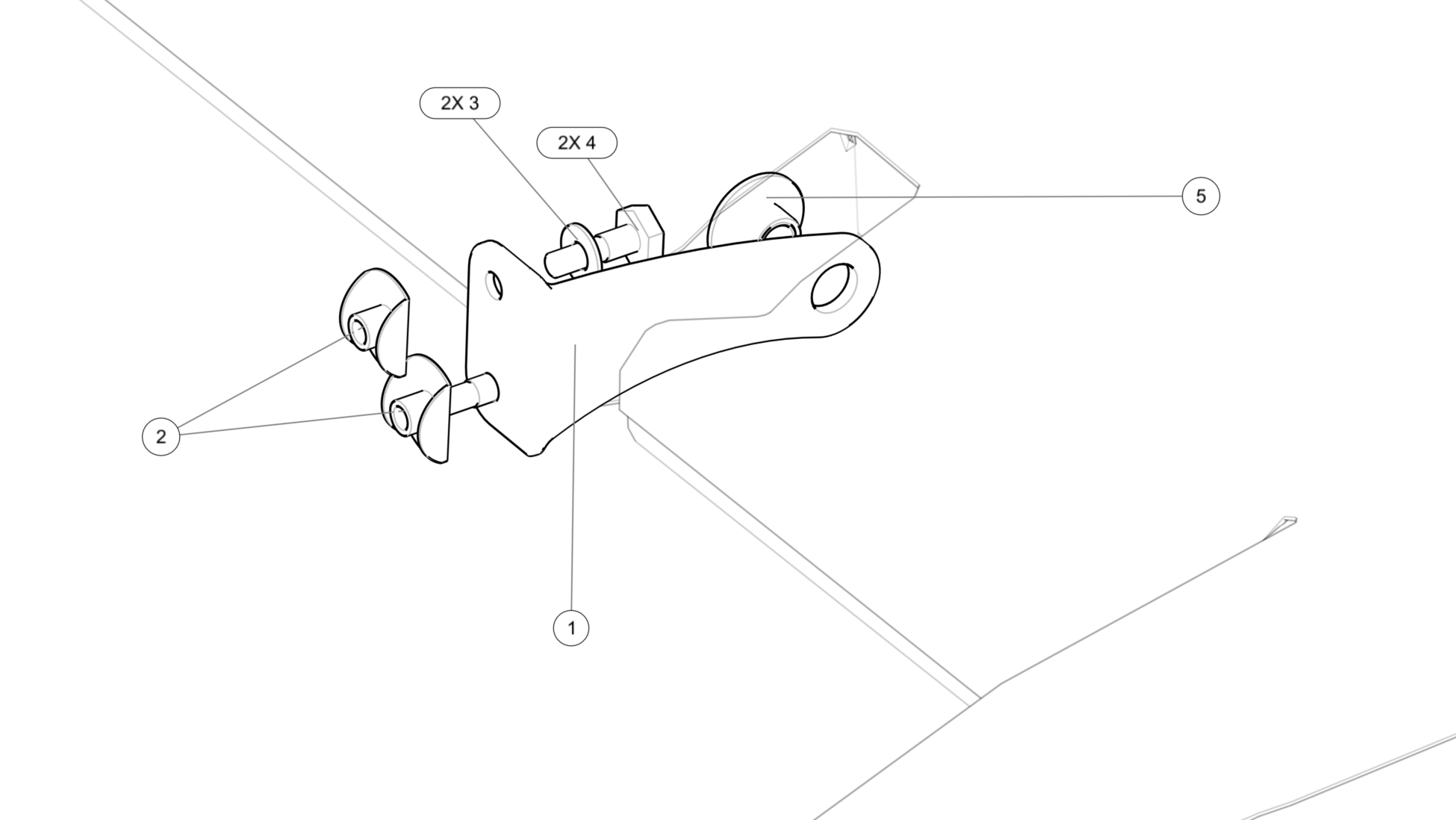

1 | ME001031 | HINGE, AILERON, OUTBD-LH, SUBASSY | 1 | Each | |
2 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 2 | Each | |
3 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 2 | Each | |
4 | AN3C5A | BOLT, MACH, CRES, 10-32X.250 | 2 | Each | |
5 | M81934/2-04C008 | BEARING, SLEEVE, FLGD, SLFLBR, CRES, .250X.250 | 1 | Each | Included in ME001031 |
